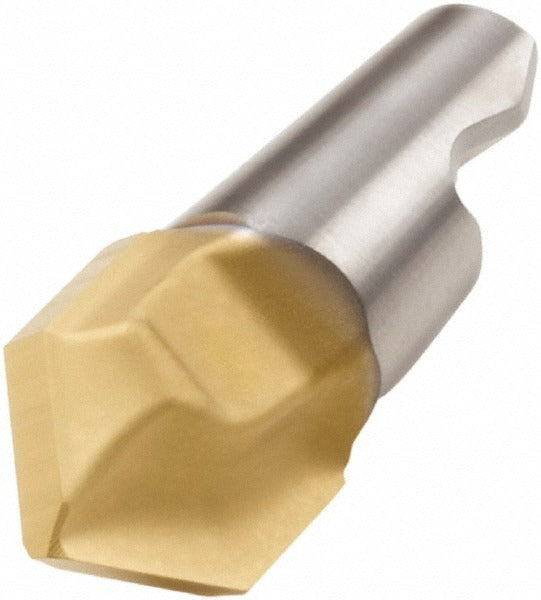

Seco 74080706 Carbide Replaceable Milling Tip MM06

Product Description

The SECO 74080706 is a carbide replaceable milling tip designed for the Minimaster MM06 modular milling system. This chamfer-style tip features a 90-degree included angle with a 45-degree lead angle, a cutting diameter of 0.236 inches, and a maximum depth of cut of 0.113 inches. The functional length is 0.280 inches, and the tip carries a TiAlN coating applied via PVD process for extended wear resistance in demanding cutting conditions. It uses a right-hand cut orientation with M02 chipbreaker geometry and T60M grade carbide substrate. Licensed machinists and CNC tooling technicians install this tip as a consumable replacement in compatible Minimaster holders.

This tip is suited for use in milling applications across a wide range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The chamfer geometry and 45-degree lead angle make it appropriate for chamfering operations and light profiling on machining centers in both production and job-shop environments. It conforms to ANSI standards and carries the UNSPSC code 23291601. No coolant-through capability is present on this tip, so external coolant delivery should be used when required by the application.

Key Features

• Carbide construction with PVD-applied TiAlN coating for heat and wear resistance
• T60M grade substrate with M02 chipbreaker geometry
• Chamfer tip type with 90-degree included angle and 45-degree lead angle
• 0.236-inch cutting diameter with 0.113-inch maximum depth of cut
• Right-hand cut orientation for standard milling holder compatibility
• Suitable for six primary workpiece material categories: P, M, K, N, S, and H

Compatibility

Designed for use with the SECO Minimaster MM06 modular milling system, insert size 0.236-C90. This tip corresponds to the full designation MM06-0.236-C90-M02 and is intended for use in holders compatible with that series.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians familiar with indexable milling systems. The machine spindle must be fully stopped and locked out before removing or installing replaceable tips. Use the appropriate torque wrench or tip-seating tool specified by the holder manufacturer to ensure proper seating. Do not exceed the maximum depth of cut or use this tip in applications outside its rated material categories.
