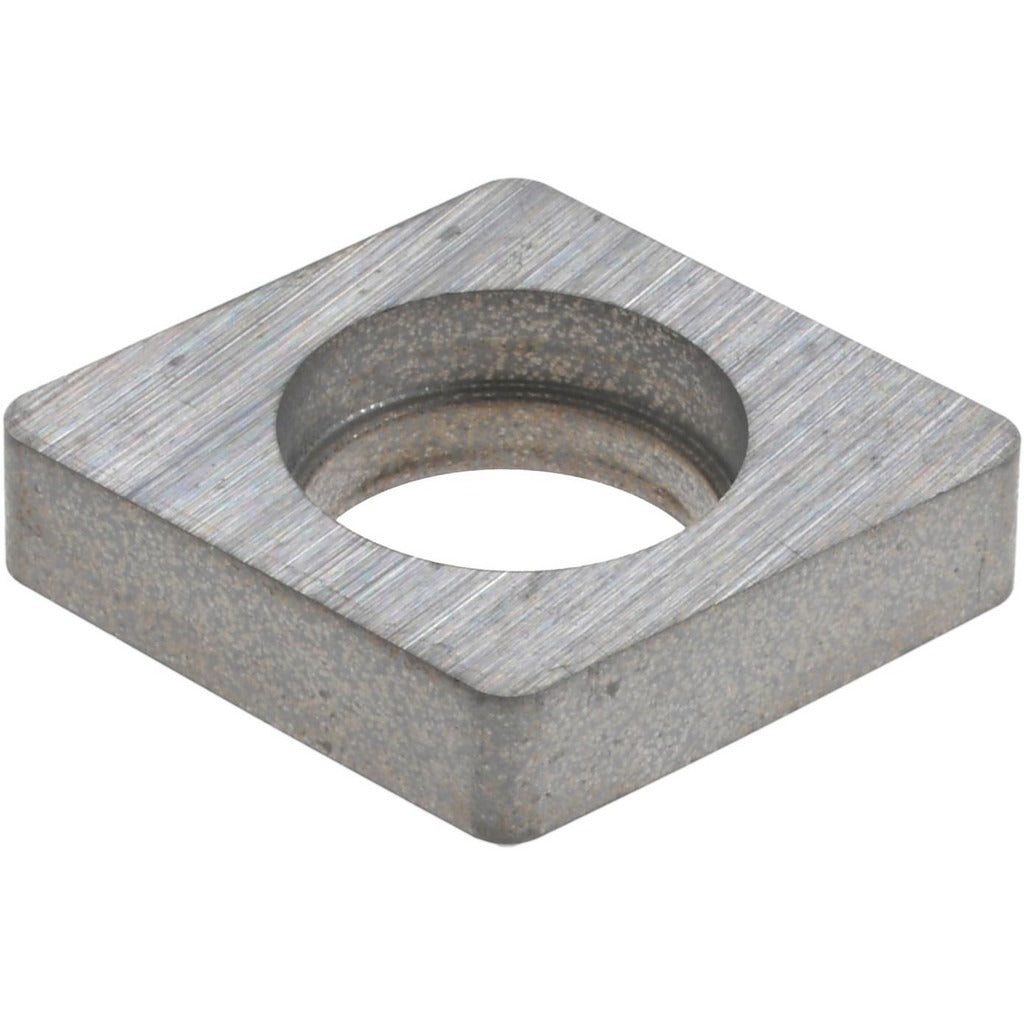

Seco 74072259 Anvil Indexable Toolholders 0.625 in

Product Description

The SECO 74072259 is a precision anvil designed for use with indexable toolholders in metal cutting applications. The anvil seats beneath the cutting insert, providing a stable, hardened support surface that protects the toolholder pocket from cutting forces and impact. It is sized for a 0.625-inch insert inscribed circle, corresponding to toolholder insert size code 5,32-5, and carries an industry standard number of 19030. This component is installed by machinists and toolroom technicians during setup or insert changeover on CNC lathes, mills, and turning centers equipped with compatible indexable tooling systems.

This anvil is suited for indexable toolholders requiring a 0.625-inch IC insert seat with a thickness of 3/16 inch. It is compatible with anvil screw S-58 for secure retention within the toolholder pocket. Typical applications include production turning, facing, and profiling operations where consistent insert seating is critical to tool life and surface finish. The part ships individually per package unit, with a minimum order quantity of 10 pieces.

Key Features

• Sized for 0.625-inch insert inscribed circle for precise insert fitment
• Toolholder insert size code 5,32-5 for targeted compatibility
• Compatible with anvil screw S-58 for secure pocket retention
• 3/16-inch thickness provides consistent insert height reference
• Industry standard number 19030 for cross-reference identification
• UNSPSC code 23242100 for procurement and catalog classification

Compatibility

Designed for indexable toolholders accepting a 0.625-inch IC insert with toolholder insert size code 5,32-5, secured using anvil screw S-58.

Installation Notes

Anvil installation and replacement is performed by machinists or toolroom personnel during toolholder maintenance or insert changeover. Always power down and lock out the machine before servicing the toolholder pocket. Ensure the anvil seat and pocket are clean and free of chips or debris before seating the anvil. Use the correct anvil screw and torque per the toolholder manufacturer's documentation.
