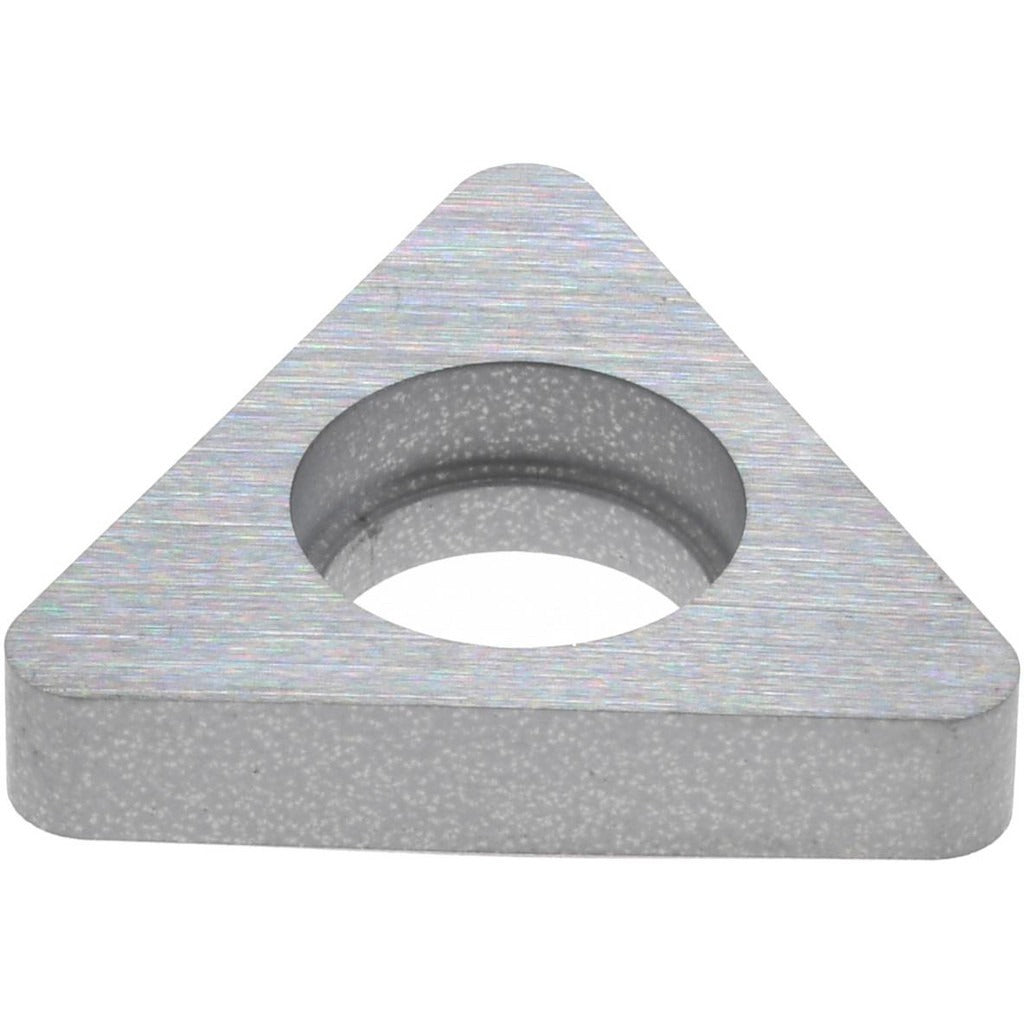

Seco 74072228 Anvil Indexable Toolholder 0.375 Inch

Product Description

The SECO 74072228 is a replacement anvil designed for use in indexable toolholders, providing a hardened seating surface that supports and protects the toolholder pocket when indexable inserts are in service. Sized for a 0.375 inch insert inscribed circle, this anvil corresponds to a Toolholder Insert Size Code of 3 and is compatible with the S-34 anvil screw. Machinists and tool crib technicians install these components as part of routine insert seat maintenance to preserve pocket geometry and extend toolholder service life.

This anvil is used in metal cutting operations where indexable insert toolholders are employed for turning, boring, or similar cutting applications. It is a single-piece consumable component sold individually, with a minimum order quantity of 10 units. The part is cataloged under UNSPSC Code 23242100 and carries Industry Standard Number 19210, supporting procurement and inventory identification across industrial supply systems.

Key Features

• Seats inserts with a 0.375 inch inscribed circle for consistent pocket support
• Toolholder Insert Size Code 3 for straightforward size identification
• Compatible with S-34 anvil screw for secure retention
• Replacement component that protects the toolholder pocket from insert-induced wear
• Industry Standard Number 19210 for cross-reference and procurement

Compatibility

Designed as an OEM-style replacement anvil for indexable toolholders accepting a 0.375 inch inscribed circle insert with Toolholder Insert Size Code 3 and S-34 anvil screw compatibility.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians during insert change or toolholder maintenance. Power down and de-energize the machine before servicing any toolholder components. Remove the existing anvil screw and worn anvil, seat the replacement anvil flush in the pocket, and secure with the compatible S-34 anvil screw to the toolholder manufacturer's specified procedure. Inspect the pocket for damage before reinstalling to ensure proper insert seating.
