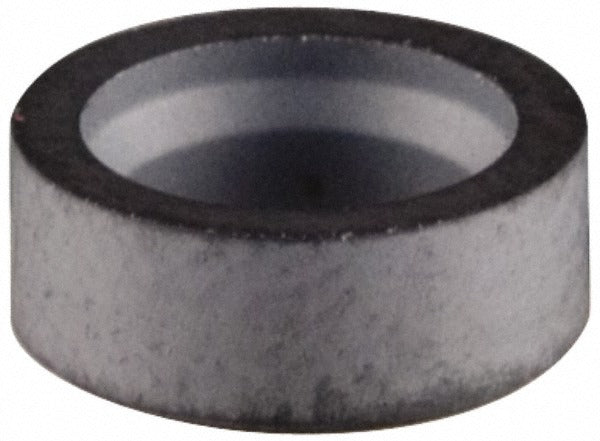

Seco 74072204 Anvil for Indexables 0.75 Inch

Product Description

The SECO 74072204 is a precision anvil designed for use with indexable insert toolholders in metal cutting and machining applications. Anvils serve as the seating surface beneath the cutting insert, distributing clamping forces evenly and protecting the toolholder pocket from wear and damage during cutting operations. This anvil is sized for a 0.75-inch insert inscribed circle, carries a toolholder insert size code of 6, and conforms to industry standard RSN-63. It is typically installed by machinists and toolroom technicians performing toolholder maintenance or insert changeovers on CNC and manual turning, milling, or boring equipment.

This anvil is suited for use in production machining environments where indexable insert toolholders require periodic seat replacement due to wear, chipping, or deformation. The 0.75-inch inscribed circle sizing and RSN-63 standard designation make it a straightforward match for appropriately coded toolholder pockets in both horizontal and vertical machining setups. It ships individually and may be ordered as single units, making it practical for maintenance stock and toolcrib inventory.

Key Features

• 0.75-inch insert inscribed circle for precise insert seating
• Toolholder insert size code 6 for standardized fitment
• Conforms to industry standard RSN-63
• Thickness of 3/16 inch for consistent pocket depth support
• Individual unit packaging supports single-unit maintenance restocking

Compatibility

Designed for indexable insert toolholders requiring a size code 6 anvil seat with a 0.75-inch insert inscribed circle conforming to industry standard RSN-63.

Installation Notes

Anvil replacement should be performed by a qualified machinist or toolroom technician with the toolholder fully removed from the machine and the machine powered down and locked out. Clean the toolholder pocket thoroughly before seating the new anvil to ensure flush, even contact. Do not force the anvil into the pocket; correct fitment should not require excessive force. Inspect the clamping screw and insert seat for additional wear during each anvil service interval.
