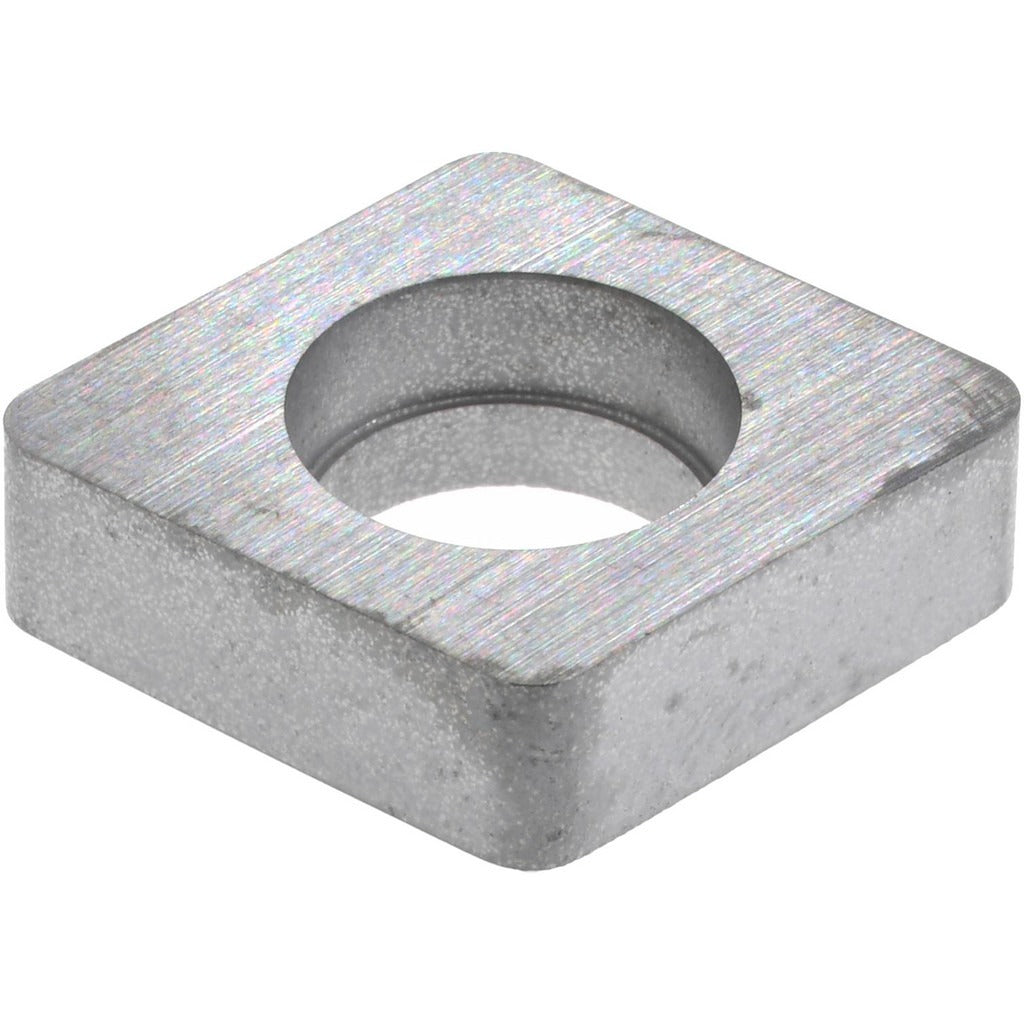

Seco 74072194 Anvil Indexable 0.5 in Insert Size 4

Product Description

The SECO 74072194 is a replacement anvil designed for use with indexable toolholders. Anvils serve as the seating surface beneath the cutting insert, providing a stable, hardened foundation that protects the toolholder pocket from damage during cutting operations. This anvil is sized for a 0.5 inch insert inscribed circle and carries a toolholder insert size code of 4. It is compatible with the S-46 anvil screw. Machinists and toolroom technicians working with indexable turning, boring, or milling setups rely on precision-fit anvils like this one to maintain insert stability and extend pocket life between insert changes.

This anvil is suited for use in metalworking and machining environments where indexable insert toolholders are standard equipment. It applies to toolholder setups requiring a 0.5 inch inscribed circle insert seat, fitting size code 4 pockets. Industry standard number 41168 is associated with this part. The 3/16 inch thickness makes it appropriate for toolholder configurations requiring that seating depth. It is sold individually per package with a minimum order quantity of 10 units.

Key Features

• 0.5 inch insert inscribed circle for precise insert seating
• Toolholder insert size code 4 designation for correct pocket fit
• Compatible with S-46 anvil screw for secure assembly
• 3/16 inch thickness provides correct seating depth in the toolholder pocket
• Industry standard number 41168 for cross-reference identification
• Sold as single-piece package quantity

Compatibility

Designed as an OEM-style replacement anvil for indexable toolholders requiring a size code 4 pocket with a 0.5 inch insert inscribed circle and S-46 anvil screw compatibility.

Installation Notes

Installation is typically performed by a machinist or toolroom technician during insert change or toolholder maintenance. Power down and lock out the machine spindle before accessing the toolholder pocket. Remove the existing anvil screw and worn anvil before seating the replacement, ensuring the pocket is clean and free of debris. Use the correct S-46 anvil screw and tighten to the toolholder specification using appropriate torque tools.
