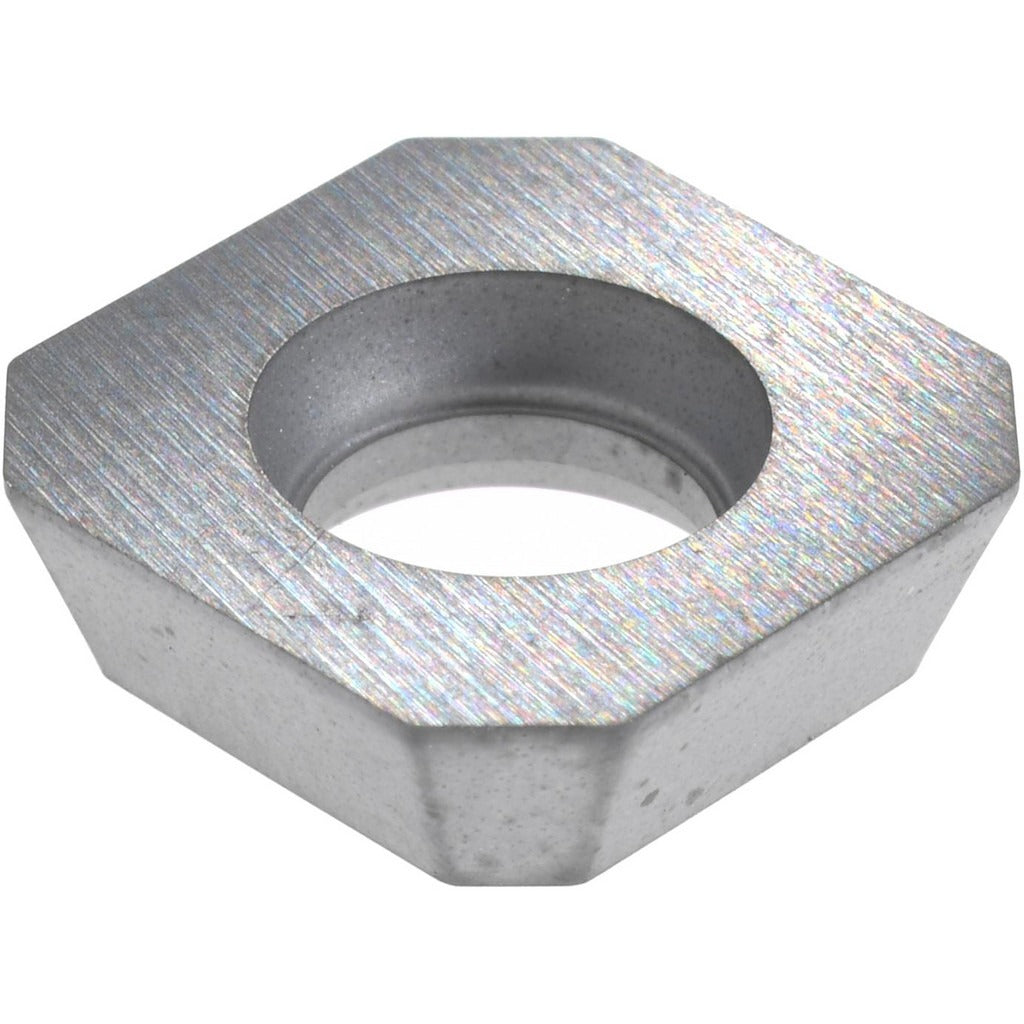

Seco 74011788 Anvil for Indexables 0.5in External Rh

Product Description

The SECO 74011788 is a precision anvil designed for indexable insert tooling systems. It supports a 0.5-inch insert inscribed circle and is configured for external right-hand orientation with a 0-degree helix angle. Anvils serve as the seating component beneath the insert in indexable cutting tool assemblies, providing a stable bearing surface that protects the tool body and ensures accurate insert positioning. This part is handled and installed by machinists, toolroom technicians, and CNC setup professionals working with indexable milling or turning toolholders.

This anvil is suited for use in indexable toolholders where a 0.5-inch IC insert is employed in external right-hand cutting applications. The 0-degree helix angle makes it appropriate for configurations that require a neutral cutting geometry. It is compatible with anvil screw F94009 T09P and anvil key T09P-3, making it straightforward to source the correct mating hardware for a complete assembly. Typical install scenarios include production machining environments and toolroom setups requiring insert seat replacement or toolholder reconditioning.

Key Features

• 0.5-inch insert inscribed circle for precise insert seating
• External right-hand orientation for correct toolholder fitment
• 0-degree helix angle for neutral cutting geometry compatibility
• Compatible anvil screw: F94009 T09P
• Compatible anvil key: T09P-3
• Industry standard number 11788 for cross-reference identification

Compatibility

Designed for use with indexable toolholders requiring a 0.5-inch IC insert seat in an external right-hand configuration. Compatible anvil screw is F94009 T09P and compatible anvil key is T09P-3, as specified by the manufacturer.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians during insert seat replacement or toolholder maintenance. Power down and lock out any machine before servicing the toolholder. Use the specified anvil screw and anvil key to ensure proper clamping force and seat stability. Do not substitute non-specified hardware, as incorrect components can compromise insert positioning and cutting performance.
