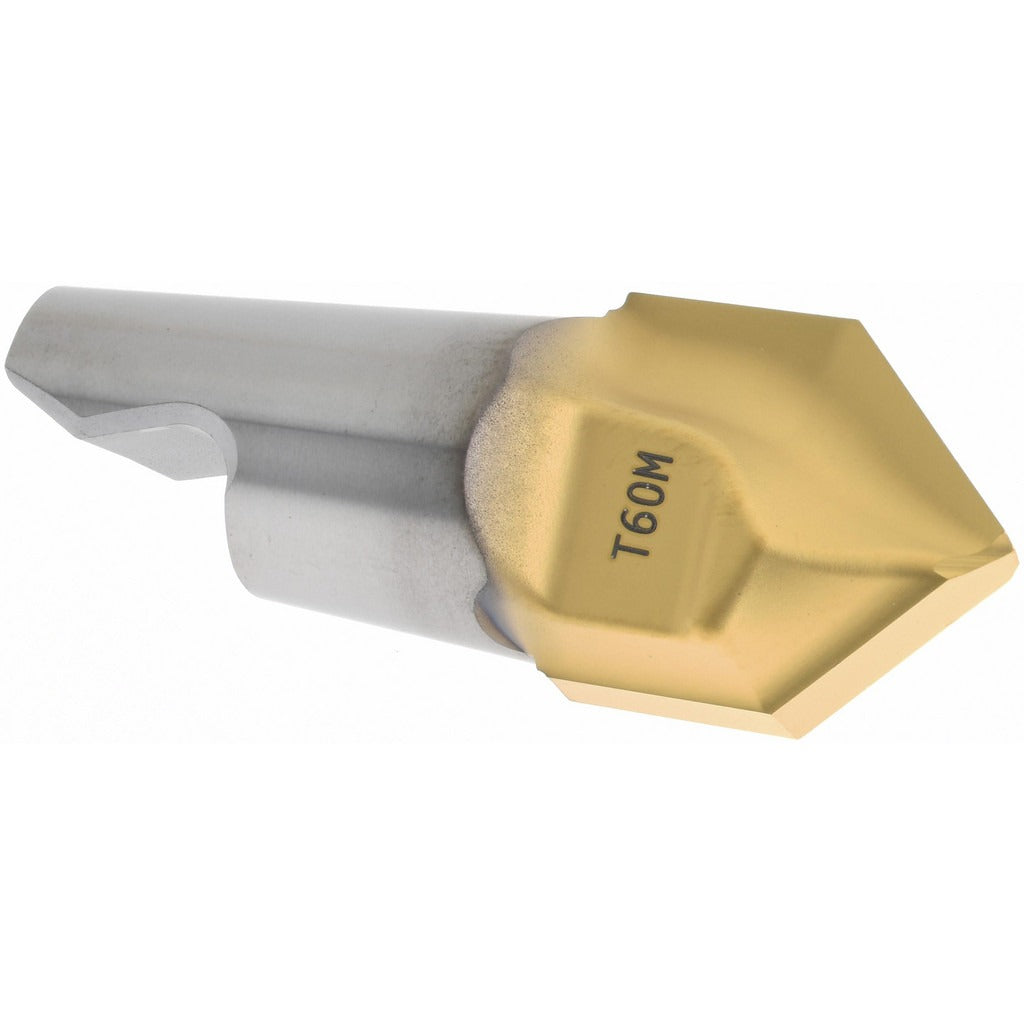

Seco 74004538 Chamfer Milling Tip 0.630 in Carbide MM16

Product Description

The SECO 74004538 is a replaceable chamfer milling tip designed for use with MM16 Minimaster series tooling systems. Manufactured from solid carbide with a PVD-applied TiAlN coating, this insert delivers wear resistance across a wide range of workpiece materials. It features a 90-degree included angle with a 45-degree chamfer angle, a 0.630-inch cutting diameter, and a maximum depth of cut of 0.296 inches (7.5 mm). The right-hand cut geometry and M06 chipbreaker are suited to productive, controlled material removal in production milling applications. Licensed machinists and CNC operators are the primary users.

This tip is intended for use in CNC milling operations across a broad range of industries. The T60M manufacturer grade and TiAlN coating make it suitable for machining steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. Its functional length of 0.756 inches (19.20 mm) and extension from holder of 0.756 inches provide consistent tool reach when seated in a compatible MM16 Minimaster holder. It conforms to ANSI standards and is cataloged under UNSPSC code 23291601.

Key Features

• Carbide substrate with PVD TiAlN coating for extended tool life in ferrous and difficult-to-machine materials
• 90-degree included angle with 45-degree chamfer and 45-degree lead angle for chamfering operations
• 0.630-inch cutting diameter with 0.296-inch maximum depth of cut
• 2-flute right-hand geometry with M06 chipbreaker for chip control
• Functional length of 0.756 inches (19.20 mm) with consistent extension from holder
• Compatible with P, M, K, N, S, and H workpiece material classifications per ISO designation

Compatibility

Designed for use with MM16 Minimaster series interchangeable milling tip holders. The insert size is 0.630-C90 and the full tip designation is MM16-0.630-C90-M06. Coolant-through is not supported by this tip configuration.

Installation Notes

This replaceable tip is installed and removed by a CNC machinist or toolroom technician using the torque tool specified by the Minimaster holder manufacturer. Ensure the machine spindle is fully stopped and the tool is secured in a vise or holder fixture before seating or removing the tip. Inspect the tip pocket and seating surface for chips or debris before installation. Follow the holder manufacturer's seating procedure to ensure proper engagement and runout.
