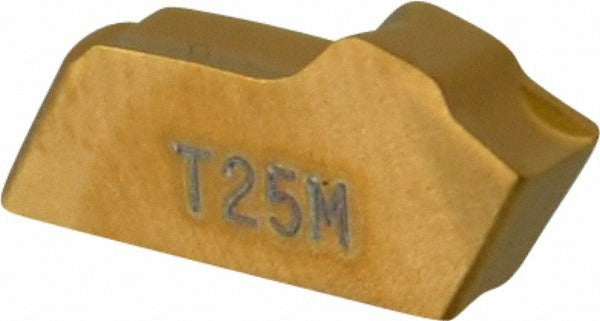

Seco 74001967 Carbide Cutoff Insert T25M Neutral

Product Description

The SECO 74001967 is a solid carbide cutoff insert engineered for parting and grooving operations on CNC lathes and turning centers. It carries SECO manufacturer grade T25M with a CVD-applied multilayer coating of TiC, TiCN, and TiN, providing wear resistance and thermal stability across a wide range of workpiece materials. The insert features a neutral lead angle and neutral hand orientation, a corner radius of 0.007 inches, and an insert width of 0.098 inches. At 0.354 inches in overall length, it seats into Series 150.10 compatible toolholders. Machinists and CNC operators install this insert for repetitive cutoff work where consistent edge geometry and coating durability are required.

This insert is designed for cut-off applications across universal primary workpiece materials, making it suitable for general-purpose production turning environments in both job shop and manufacturing settings. The T25M grade and CVD multilayer coating make it appropriate for steel, stainless, and similar OD turning cutoff operations. The chipbreaker designation is 12, which supports chip control during parting. It is sold individually per package with a minimum order quantity of 10 units, making it a standard replenishment insert for shops running Series 150.10 tooling systems.

Key Features

• Solid carbide substrate with CVD-applied TiC, TiCN, and TiN multilayer coating for extended tool life
• Manufacturer grade T25M rated for universal primary workpiece material coverage
• Neutral lead angle and neutral hand for straightforward cutoff and parting setups
• 0.007 inch corner radius for controlled edge engagement on cutoff passes
• Chipbreaker style 12 promotes reliable chip evacuation during deep parting cuts
• Insert width of 0.098 inches consistent with Series 150.10 system geometry

Compatibility

Designed for use with Series 150.10 cutoff and grooving toolholders. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before changing inserts. Use the correct torque wrench and insert seating tool specified for Series 150.10 holders to avoid cracking the carbide substrate. Inspect the insert pocket for chips or debris before seating a new insert.
