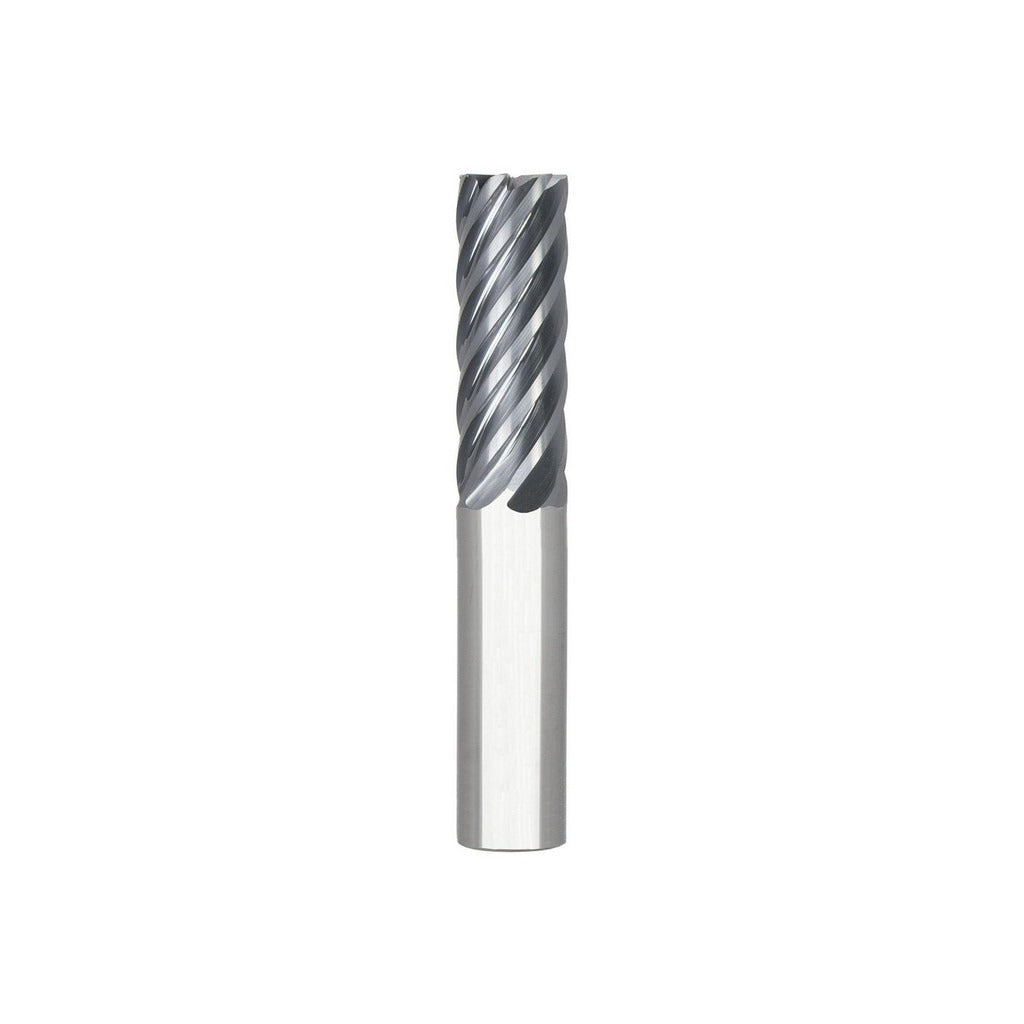

Seco 17002317 Corner Radius End Mill 1/4in 7 Flute Carbide

Product Description

The SECO 17002317 is a 7-flute solid carbide corner radius end mill designed for high-performance metal removal in demanding machining environments. Built on the S738R series platform, it features a 1/4 inch mill diameter, 3/4 inch length of cut, and a 0.0300 inch corner radius that reduces stress concentration at part corners and extends tool life. The AlTiN PVD coating provides thermal resistance and hardness for dry or semi-dry cutting conditions. With a 38-degree helix angle and close-pitch flute geometry, this tool is engineered to handle both roughing and finishing operations in a single setup. It is installed in standard toolholders with a straight-cylindrical 1/4 inch shank.

This end mill is suited for use on CNC machining centers and manual mills where precision corner geometry is required. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium, covering ISO material groups P, M, K, and S. The single-end, right-hand cutting and right-hand flute direction make it compatible with conventional CNC spindle configurations. The 2-1/2 inch overall length provides reach suitable for most standard milling applications without requiring extended-reach toolholding.

Key Features

• 7-flute close-pitch geometry supports aggressive feed rates in steel and stainless steel
• AlTiN PVD coating delivers oxidation resistance and surface hardness for high-temperature cutting
• 0.0300 inch corner radius reduces chipping and part stress at corner transitions
• 38-degree medium helix balances chip evacuation with cutting stability
• Micrograin solid carbide substrate provides rigidity and wear resistance
• Capable of both roughing and finishing, reducing tool change frequency

Compatibility

Designed for use with standard straight-cylindrical toolholders. Suitable for machining steel, stainless steel, cast iron, superalloys, and titanium workpieces. Part of the SECO S738R series.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked before mounting or removing the tool from the toolholder. Confirm proper runout before cutting: the maximum TIR for this tool is 0.0005 inches. Follow your facility safety protocols and toolholder manufacturer torque guidelines when securing the shank.
