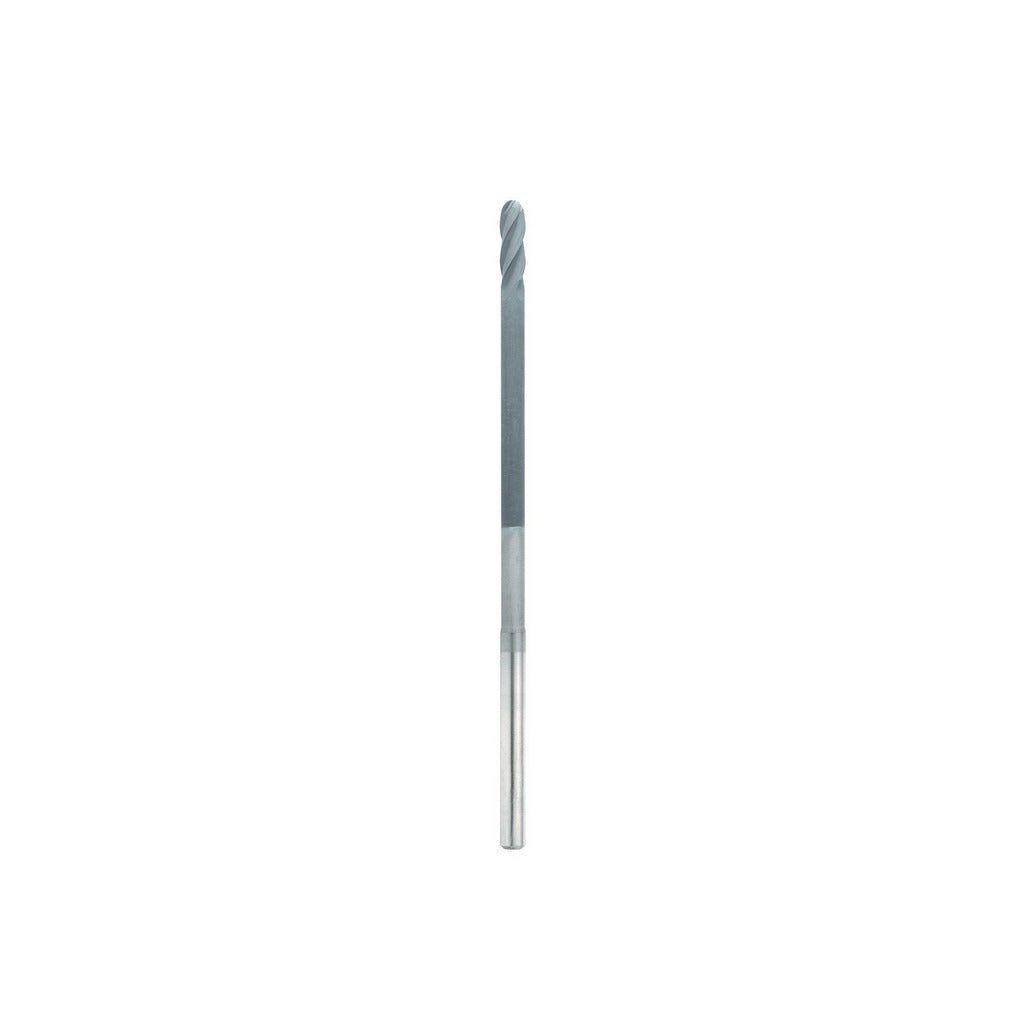

Seco 17000097 Ball End Mill 1/16 in 4 Flute Carbide Cvd

Product Description

The SECO 17000097 is a single-end, 4-flute solid carbide ball end mill designed for precision milling in aluminum and non-ferrous materials. It carries a CVD diamond coating that extends tool life and reduces built-up edge when cutting abrasive or gummy materials. With a 1/16 inch (0.0625 inch) mill diameter and a 3/16 inch (0.1875 inch) length of cut, this tool is built for small-feature detail work, micro-slotting, and finishing passes. The extended-reach geometry and 3-inch overall length allow access to deep or recessed features without sacrificing rigidity where the flute geometry allows.

This end mill is suited for CNC machining centers running aluminum, graphite, composites, and other non-ferrous workpiece materials. The extended-reach configuration makes it a practical choice for mold, die, and medical-component work where tool reach into pockets or contoured surfaces is required. It is sold as a single-piece unit and belongs to SECO's DIAXRB430 series, catalog number DIAXRB430-0.063-G5-B.0-Z4. Installation is performed by machining professionals on CNC equipment.

Key Features

• CVD diamond coating for extended tool life in non-ferrous and abrasive materials
• 4-flute spiral configuration with 30-degree medium helix angle for balanced chip evacuation
• Centercutting geometry enables plunge entry
• Extended-reach length type with 1 inch reach length for deep-feature access
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Straight-cylindrical shank, 1/8 inch diameter, fits standard collet toolholders

Compatibility

Designed as an OEM-style replacement and standard production tool within the SECO DIAXRB430 series, suited for CNC machining of aluminum and non-ferrous workpiece materials (Primary Workpiece Material Code: N).

Installation Notes

Installation is performed by a machinist or CNC setup technician. Power down and lock out the spindle before loading or removing the tool from the collet or toolholder. Use a calibrated torque wrench and appropriate collet nut wrench to secure the straight-cylindrical shank — avoid over-tightening, which can damage the shank tolerance zone. Verify runout after installation using a dial indicator; the specified TIR maximum for this tool is 0.0000 inch, so toolholder condition and collet cleanliness are critical.
