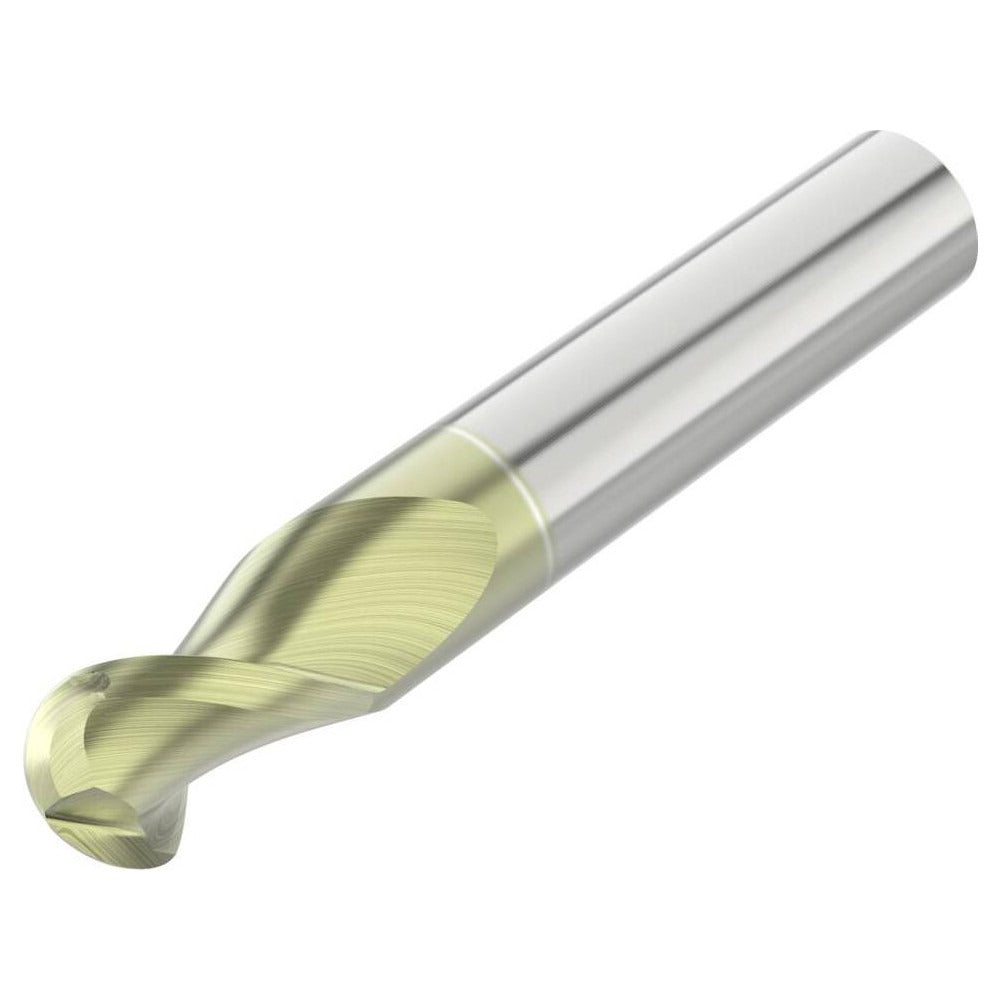

Seco 10022732 Ball End Mill 1/4 in 2 Flute Solid Carbide

Product Description

The SECO 10022732 is a solid carbide ball end mill designed for high-performance milling in aluminum and non-ferrous materials. Part of the AB245 series, this single-end mill features a 1/4 inch cutting diameter, 3/8 inch length of cut, and a 45-degree high-helix spiral flute geometry that promotes efficient chip evacuation and reduced heat buildup. The ANF PVD coating is applied specifically for non-ferrous applications, helping to minimize built-up edge and extend tool life. With a 2-flute configuration and centercutting capability, it handles both slotting and profiling operations in one tool.

This end mill is suited for use in CNC machining centers and manual mills where aluminum alloys, copper, brass, and similar non-ferrous workpiece materials are being cut. The short length type and straight cylindrical 1/4 inch shank make it compatible with standard collet chucks and end mill holders. Its right-hand cut and right-hand flute direction are standard for conventional and climb milling setups in production and job shop environments. Machinists and CNC operators working with non-ferrous stock will find this tool appropriate for both roughing and finishing passes.

Key Features

• Solid carbide construction for rigidity and heat resistance in high-speed non-ferrous cutting
• ANF PVD coating optimized for aluminum and non-ferrous materials, reduces built-up edge
• 45-degree high-helix angle promotes fast chip evacuation and smooth surface finish
• Centercutting design allows direct plunge entry into workpiece material
• 2-flute configuration balances chip clearance with cutting efficiency
• Ball nose profile enables 3D contouring and profiling in addition to standard end milling

Compatibility

Designed for use with standard 1/4 inch collet chucks and end mill holders in CNC machining centers and manual milling machines. Intended for aluminum and non-ferrous workpiece materials per the AB245 series application design.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully powered down and the machine is in a safe state before mounting or removing the end mill from its holder. Use a properly sized collet or end mill holder to achieve correct runout; maximum TIR for this tool is 0.0005 inches. Follow the machine tool manufacturer guidelines for feeds, speeds, and clamping torque appropriate to carbide tooling in non-ferrous applications.
