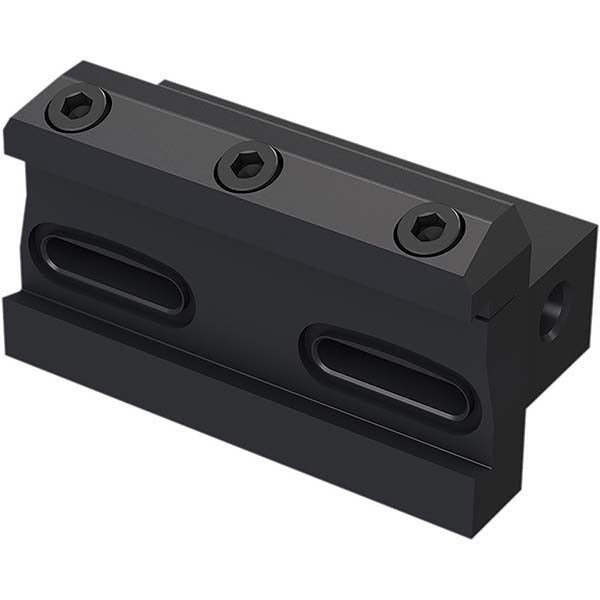

Seco 10005705 Indexable Cut-off Blade Tool Block

Product Description

The SECO 10005705 is an indexable cut-off blade tool block designed for CNC turning operations. Built to the 150.10-JETI standard and cataloged as 150.10-16-20JETI, this tool block accepts indexable cut-off blades and delivers precise parting and grooving performance on turning centers and lathes. It supports both left-hand and right-hand cutting directions, making it versatile across a range of setups. The block features integrated coolant-through capability, directing cutting fluid directly to the cutting zone for improved tool life and chip evacuation. Weighing approximately 2.21 pounds, it is a solid, production-grade tooling component for machining professionals.

This tool block is suited for production turning environments where reliable blade clamping and repeatable insert positioning are required. The reversible design allows the same block to serve both left-hand and right-hand cutting setups, reducing tooling inventory. Coolant-through functionality supports high-speed parting on difficult materials where heat management is critical. It is appropriate for use on conventional lathes and CNC turning centers in both job shop and high-volume production settings.

Key Features

• 150.10-JETI tool block style, cataloged as 150.10-16-20JETI
• Supports both left-hand and right-hand cutting directions
• Reversible design reduces duplicate tooling requirements
• Integrated coolant-through channels for direct cutting zone cooling
• Compatible with the 150.1 and Jetstream series tooling systems
• Solid construction with a 25.4 mm shank width for stable clamping

Compatibility

Designed for use with the SECO 150.1 and Jetstream series indexable cut-off blade systems. Specific blade and insert compatibility should be confirmed against SECO tooling documentation for the 150.10-16-20JETI catalog number.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is powered down and brought to a complete stop before mounting or adjusting the tool block. Verify shank clamping torque and coolant line connections per the machine tool manufacturer specifications. Confirm cutting direction orientation — left-hand or right-hand — before initiating any cutting cycle.
