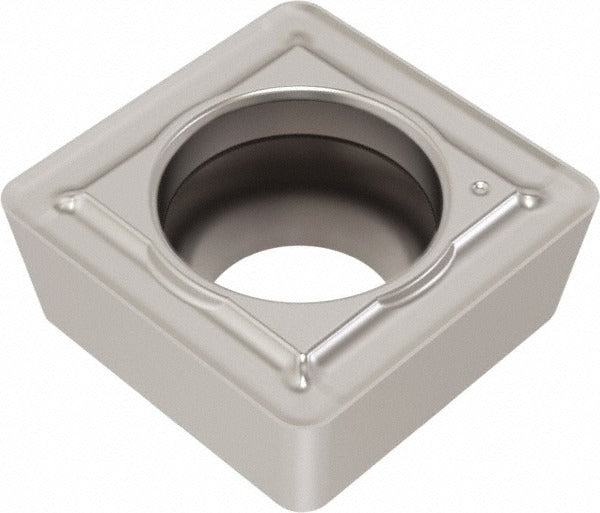

Seco 03134318 Indexable Drill Insert SCGX15MP DS2050

Product Description

The SECO 03134318 is a solid carbide indexable drill insert designed for use with Perfomax indexable drill bodies. The insert carries the SCGX15MP geometry designation with manufacturer grade DS2050, a PVD-coated carbide grade suited to a broad range of workpiece materials. It features a 90-degree square shape with a 5/8-inch inscribed circle, a 1.20 mm corner radius, and a 7-degree relief angle. The MP chipbreaker geometry helps manage chip flow and cutting forces across varying feed and speed conditions. Installation and replacement are performed by licensed machinists or tooling technicians in production and job-shop environments.

This insert is rated for universal primary workpiece material application, covering material grade codes M, N, P, and S — meaning it sees use on carbon and alloy steels, stainless steels, non-ferrous materials, and heat-resistant superalloys. Typical use cases include production drilling operations where consistent hole quality and insert indexability reduce downtime. The insert is sold individually (package quantity of 1) with a minimum order quantity of 10 units, making it suitable for toolroom stocking programs and production cell replenishment.

Key Features

• Solid carbide construction with PVD coating for extended wear resistance
• DS2050 manufacturer grade rated for universal workpiece material compatibility (M, N, P, S codes)
• SCGX geometry with MP chipbreaker for controlled chip evacuation in drilling operations
• Square 90-degree shape with 1.20 mm corner radius and 7-degree relief angle
• 5/8-inch (0.6250 inch) inscribed circle with bilateral cutting direction (left-hand and right-hand)
• Perfomax series insert — engineered for direct replacement in compatible Perfomax drill bodies

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies accepting SCGX15 insert pockets. Verify pocket geometry, insert size code 150512, and clamping screw specifications against the drill body documentation before ordering.

Installation Notes

Insert seating and torquing should be performed by a qualified machinist or tooling technician following the drill body manufacturer torque specifications for the clamping screw. Power down and lock out the spindle before indexing or replacing inserts. Inspect the insert pocket and clamping screw for debris or wear before seating a new insert. Do not exceed the drill body manufacturer recommended cutting parameters for this insert grade and geometry.
