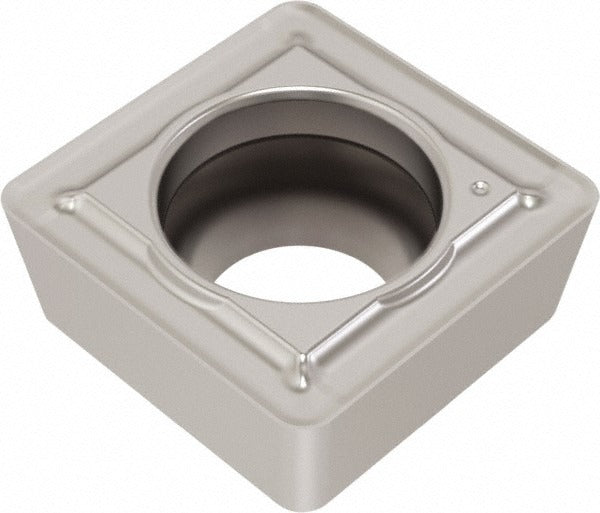

Seco 03134314 SCGX07MP DS2050 Indexable Drill Insert

Product Description

The SECO 03134314 is a solid carbide indexable drill insert designed for use in indexable drilling systems. It carries the SCGX insert style with a square shape and a 90-degree included angle. The manufacturer grade is DS2050, and the insert features a TiAlN and NbN coating applied through a PVD process. The inscribed circle measures 7.94 mm (0.313 inches), the corner radius is 0.8 mm, and the chipbreaker designation is MP. This insert belongs to the SECO Perfomax series and is installed by machinists and tool-room technicians running precision hole-making operations in production environments.

This insert is rated for universal primary workpiece material compatibility, covering material codes M, N, P, and S. This range encompasses a broad spectrum of materials including steel, stainless steel, non-ferrous metals, and high-temperature alloys. It is suited for use in CNC machining centers and drilling stations where indexable insert drills are used to achieve consistent hole quality and tool life. The MP chipbreaker geometry supports effective chip control across these varied workpiece materials.

Key Features

• SCGX insert style with square shape and 90-degree included angle for stable cutting geometry
• DS2050 grade with PVD-applied TiAlN and NbN coating for wear resistance and extended tool life
• 7.94 mm inscribed circle and 0.313-inch width and length for precise fitment in compatible Perfomax drill bodies
• 0.8 mm corner radius with MP chipbreaker for controlled chip formation across universal workpiece materials
• Material codes M, N, P, and S coverage supports steel, stainless steel, non-ferrous, and superalloy applications
• 7-degree relief angle reduces friction and supports clean, accurate hole geometry

Compatibility

Designed for use in SECO Perfomax series indexable drill bodies that accept the SCGX insert style with insert size code 07. Confirm drill body seat geometry and insert pocket dimensions before installation.

Installation Notes

Indexable drill inserts of this type are seated and secured by a machinist or tooling technician using the appropriate torque wrench and insert screw specified by the drill body manufacturer. Always power down the machine spindle and verify the tool is fully stopped before indexing or replacing inserts. Inspect the insert pocket and clamping screw for debris or wear before seating a new insert. Do not exceed the cutting parameters specified in the Perfomax drill body documentation for this insert size and grade.
