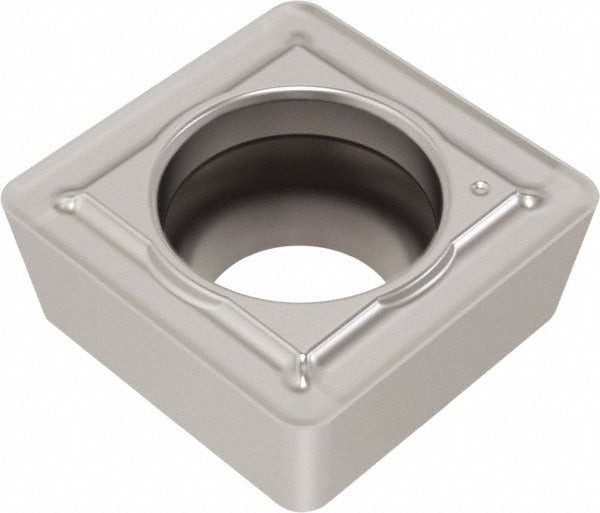

Seco 03134313 Indexable Drill Insert SCGX06MP DS2050

Product Description

The SECO 03134313 is a square indexable drill insert designed for use with Perfomax series indexable drills. It is manufactured from solid carbide with a PVD coating and carries the DS2050 manufacturer grade. The insert features an SCGX style with an MP chipbreaker geometry, a 0.25 inch inscribed circle, 0.25 inch thickness, and a 0.40 mm corner radius. The 90-degree included angle and 7-degree relief angle make it suited for drilling operations across a broad range of workpiece materials. Licensed HVAC and trade professionals, machinists, and tooling technicians source this insert for production drilling applications.

This insert is intended for use in Perfomax indexable drill bodies where SCGX-style inserts are specified. It supports left-hand and right-hand cutting directions, giving it flexibility across setups. The DS2050 grade with PVD coating performs well on universal material groups including ISO material codes M, N, P, and S, covering stainless steels, non-ferrous metals, steel, and heat-resistant superalloys. It is well suited to both general-purpose and mixed-material production environments where a single insert grade must handle varying workpiece compositions.

Key Features

• Solid carbide construction with PVD coating for wear resistance and edge integrity
• DS2050 manufacturer grade rated for universal material groups M, N, P, and S
• MP chipbreaker geometry promotes chip control across varied feed and depth-of-cut conditions
• 0.40 mm corner radius reduces cutting forces and supports edge stability
• Supports both left-hand and right-hand cutting directions
• SCGX insert style with 90-degree square shape and 7-degree relief angle

Compatibility

Designed for use in SECO Perfomax series indexable drill bodies that accept SCGX06 insert style with a 06 insert size code. Verify drill body specifications before ordering to confirm insert seat compatibility.

Installation Notes

Insert replacement and seating should be performed by a qualified machinist or tooling technician with the machine powered down and locked out per established lockout/tagout procedures. Use the appropriate torx or hex key as specified by the drill body manufacturer when securing the insert clamp screw. Do not exceed the clamping torque range indicated in the drill body documentation. Inspect the insert pocket and seating surface for damage or debris before installing a new insert.
