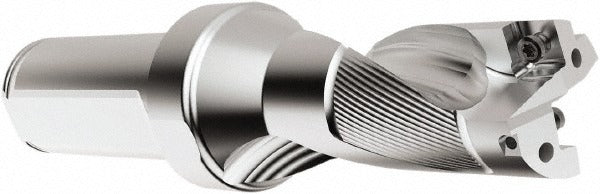

Seco 03080725 Indexable Insert Drill 1 in 2xd Straight Shank

Product Description

The SECO 03080725 is a PerfoMAX series indexable insert drill designed for general-purpose drilling operations in metal and similar materials. Built with a straight cylindrical shank, it accepts two indexable inserts and delivers a maximum drill depth of 2 inches at a 2xD depth-to-diameter ratio. The 1-inch drill diameter and 1-1/4-inch shank diameter provide a rigid, stable setup suited for CNC machining centers and drill presses. Coolant-through capability helps evacuate chips and extend insert life during continuous drilling cycles. The tool body is constructed of steel and features a right-hand cutting direction.

This drill is intended for production and job-shop environments where repeatable hole quality and fast insert changeover are priorities. The PerfoMAX platform is commonly used in horizontal and vertical machining centers for drilling operations in ferrous and non-ferrous workpieces. Compatible insert styles are SCGX and SPGX with insert size codes 0703 and 070308, giving machinists flexibility in insert selection based on material and cutting conditions. The modular connection size is R7. A licensed machinist or CNC programmer typically specifies and sets up this tooling.

Key Features

• 1-inch drill diameter with 2xD depth-to-diameter ratio for a 2-inch maximum drill depth
• Accepts two indexable inserts — compatible with SCGX and SPGX insert styles, size codes 0703 and 070308
• Straight cylindrical shank at 1-1/4 inches diameter for secure machine-spindle engagement
• Coolant-through design aids chip evacuation and thermal management during drilling
• Steel tool body with right-hand cutting direction for standard spindle rotation
• Modular connection size R7 for use within compatible PerfoMAX tooling systems

Compatibility

Compatible with the SD522 drill style. Designed for use with SCGX and SPGX indexable inserts in size codes 0703 and 070308. Modular connection size R7.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully powered down and locked out before mounting or removing the tool body or inserts. Verify shank clamping torque per the machine tool manufacturer specifications and confirm insert seating before initiating a test cut. Follow the toolholder manufacturer guidelines for coolant-through pressure settings appropriate to the machine.
