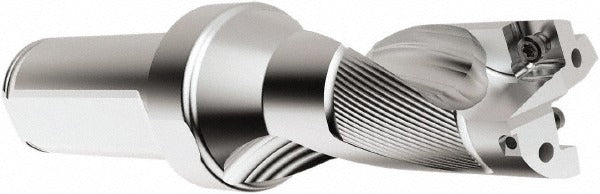

Seco 03080718 Indexable Insert Drill 7/8 in 2xd Perfomax

Product Description

The SECO 03080718 is a straight-shank indexable insert drill from the PerfoMAX series, designed for general-purpose drilling in metal-cutting applications. It accepts two indexable inserts and covers a 7/8 inch (0.875 inch) drill diameter with a maximum drill depth of 1-3/4 inches, representing a 2xD depth-to-diameter ratio. The 1 inch straight cylindrical shank seats securely in standard toolholders. The body is constructed from steel and is equipped with coolant-through capability, making it suitable for chip evacuation and heat management in demanding drilling operations. This tool is installed and operated by machinists and CNC tooling specialists in production and job-shop environments.

The 03080718 is intended for use in CNC machining centers and manual drill presses where right-hand cutting, indexable-insert tooling is required. The PerfoMAX series is built for general-purpose drilling across a range of workpiece materials. The Modular Connection Size is R7, and the tool accommodates compatible insert styles SCGX and SPGX, with compatible insert size codes 060204 and 0703. This makes it a practical choice for facilities standardizing on SECO PerfoMAX tooling systems.

Key Features

• 7/8 inch drill diameter with a 2xD depth-to-diameter ratio for controlled, stable drilling
• Accepts two indexable inserts — compatible with SCGX and SPGX styles, size codes 060204 and 0703
• Coolant-through design supports chip clearing and thermal management during operation
• 1 inch straight cylindrical shank for compatibility with standard toolholder bores
• Right-hand cutting direction; steel body construction for rigidity and durability
• Modular Connection Size R7 for integration into PerfoMAX modular tooling setups

Compatibility

Compatible with insert styles SCGX and SPGX, insert size codes 060204 and 0703, and drill style SD522. Designed for use within the SECO PerfoMAX modular tooling system with Modular Connection Size R7.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be fully powered down and locked out before mounting or changing inserts. Ensure the shank is clean and free of debris before seating in the toolholder, and verify insert seating and torque per SECO tooling guidelines before operation. Coolant-through connections should be confirmed clear and properly routed before running the tool.
