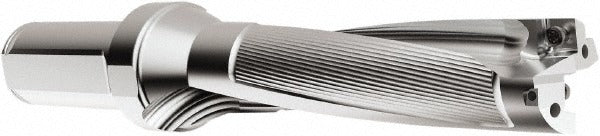

Seco 03080299 Indexable Insert Drill 23.8mm 4xd

Product Description

The SECO 03080299 is an indexable insert drill from the PerfoMAX series, designed for general-purpose drilling applications in metal-cutting environments. It accepts two indexable inserts and uses a straight cylindrical shank measuring 1 inch in diameter. Maximum drill depth reaches 3-3/4 inches at a 4xD depth-to-diameter ratio. The body is constructed from steel and features a right-hand cutting direction. Coolant-through capability supports chip evacuation and tool life in production drilling operations. This tool is typically installed and operated by machinists and CNC toolroom professionals on vertical or horizontal machining centers.

The 03080299 is suited for general-purpose hole-making in ferrous and non-ferrous materials where consistent bore diameter and controlled cycle times are required. The 23.8mm nominal drill diameter and 4xD ratio make it practical for medium-depth drilling on machining centers and manual mills. The straight shank fits standard toolholders designed for 1-inch shank tooling, and the modular connection size R7 supports compatible modular tooling systems where applicable.

Key Features

• Indexable insert design accepts 2 inserts per body, compatible with SCGX and SPGX insert styles in size codes 0703 and 070308
• Coolant-through design aids chip removal and extends insert life during high-cycle drilling
• Right-hand cutting direction with straight cylindrical shank for broad toolholder compatibility
• Steel body construction for rigidity and durability in production environments
• Modular connection size R7 supports use with compatible modular tooling adapters
• PerfoMAX series design optimized for general-purpose drilling performance

Compatibility

Compatible with drill style SD524. Accepts SCGX and SPGX indexable inserts in size codes 0703 and 070308. Insert compatibility includes SPGX0703 style inserts. Fits toolholders designed for a 1-inch straight cylindrical shank.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with indexable tooling systems. Ensure the machine spindle is fully stopped and locked out before mounting or removing the drill body from the toolholder. Inserts should be seated and torqued using the appropriate insert screw key per the insert manufacturer's seating procedure. Verify coolant-through passages are clear and aligned with the machine spindle coolant supply before operation.
