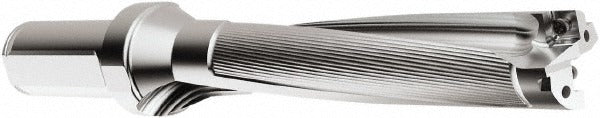

Seco 03079565 Indexable Insert Drill 3/4 in 5xd Perfomax

Product Description

The SECO 03079565 is a straight-shank indexable insert drill from the PerfoMAX series, designed for general-purpose drilling applications in metal fabrication and machining environments. It accepts two indexable inserts and delivers a maximum drill diameter of 0.75 inches (19.97 mm) with a maximum drill depth of 3.75 inches at a 5xD depth-to-diameter ratio. The 1-inch straight-cylindrical shank seats securely in standard toolholders, and the body is constructed from steel for rigidity under high feed rates. Coolant-through capability supports chip evacuation and tool life in deep-hole drilling operations. This tool is installed and run by machinists and CNC operators working in production or maintenance machining environments.

The 03079565 is suited for right-hand cutting operations in drilling applications where a 5xD depth ratio is required. It is used in CNC machining centers, manual drill presses, and turret lathes equipped with appropriate toolholding. The PerfoMAX platform supports SCGX and SPGX insert styles, including the SPGX0602 insert, giving operators flexibility in selecting insert geometry and grade for the workpiece material. The modular connection size is R7, and the neck diameter is 1.378 inches, which should be verified against the machine setup before installation.

Key Features

• 5xD depth-to-diameter ratio enables drilling to 3.75 inches in a single pass
• Accepts 2 indexable inserts in SCGX or SPGX styles, including SPGX0602
• Coolant-through design for chip flushing and improved tool life in deep-hole applications
• Straight-cylindrical 1-inch shank for compatibility with standard toolholding systems
• Right-hand cutting direction; steel body construction for rigidity
• Modular R7 connection and 1.378-inch neck diameter for precise fitment

Compatibility

Compatible with the SD525 drill style and accepts SCGX and SPGX insert styles, specifically SPGX0602 series inserts with size codes 050204 and 0602. Verify toolholder bore and coolant-through capability before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool changer or turret is in a safe position before mounting or removing the drill body. Verify that the toolholder bore matches the 1-inch shank diameter and that coolant lines are properly connected if using through-coolant. Torque all clamping screws to the insert manufacturer specifications found in the SECO tooling documentation for the applicable insert style.
