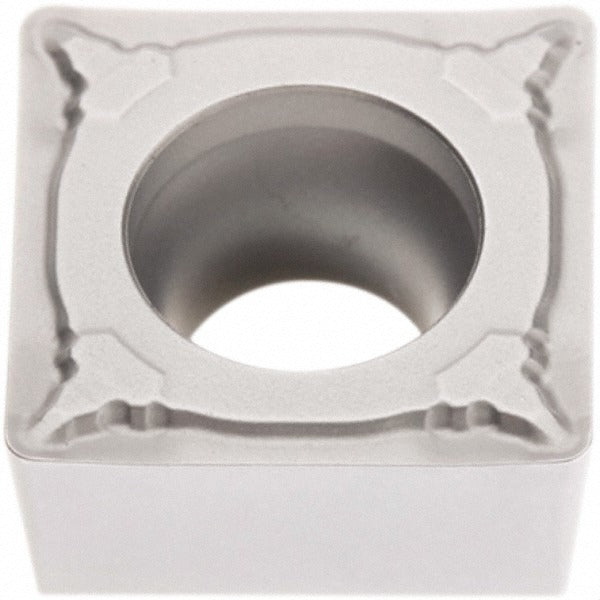

Seco 02960396 SCMT32.52-F1 TP2501 Carbide Turning Insert

Product Description

The SECO 02960396 is a SCMT32.52-F1 turning insert in grade TP2501, designed for precision finishing operations on CNC lathes and turning centers. This multi-tipped, square-shaped carbide insert features a Duratomic CVD coating system combining TiCN, Al2O3, and Cr layers for high wear resistance across a broad range of workpiece materials. The F1 chip breaker geometry is optimized for finishing cuts, delivering a sharp cutting edge and positive rake angle. With a 3/8-inch inscribed circle, 1/32-inch corner radius, and 7-degree relief angle, it is suited to light to moderate depths of cut in production environments. Licensed machinists and CNC operators install this insert as a direct screw-held replacement during routine insert indexing.

This insert is rated for use on steel (P-class), stainless steel (M-class), and cast iron (K-class) workpieces, corresponding to material grades P10, P20, P30, and P35. Typical applications include facing, boring, and external turning on both light and medium-duty lathes. The neutral hand orientation and positive side clearance make it adaptable to a wide range of toolholder configurations that accept SCMT-format inserts. Four usable cutting edges per insert extend service life between tool changes. The F1 chip breaker geometry is specifically matched to finishing passes where surface finish and dimensional accuracy are the primary objectives.

Key Features

• Duratomic CVD coating (TiCN, Al2O3, Cr) delivers high wear resistance for steel and stainless steel applications
• F1 chip breaker geometry optimized for finishing operations with a sharp cutting edge
• Square insert shape (90-degree included angle) with positive rake and 7-degree relief angle
• Four indexable cutting edges per insert for extended tool life
• Neutral hand orientation compatible with a broad range of SCMT toolholders
• Screw-held mounting for secure, repeatable insert positioning

Compatibility

Designed for use in toolholders accepting SCMT-style inserts per ANSI insert code SCMT32.52 and ISO insert code SCMT09T308. Compatible with applications involving steel (P), stainless steel (M), and cast iron (K) workpiece materials. Multi-use application across boring, facing, and turning operations.

Installation Notes

CNC machinists and turning specialists install this insert type. Index or replace inserts only after powering down the machine spindle and engaging all axis locks per shop safety procedures. Use the appropriate torque driver for the insert clamping screw — refer to the toolholder manufacturer specifications for correct clamping torque. Inspect the insert pocket seat and clamping screw for wear or debris before seating a new insert to ensure proper edge height and rigidity.
