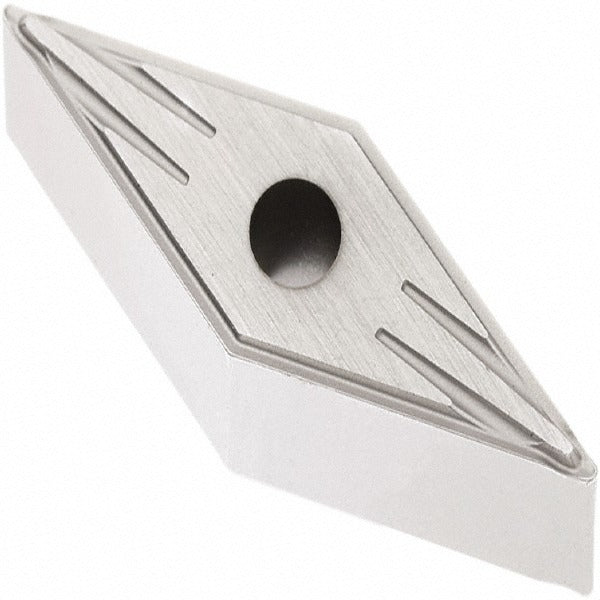

Seco 02960042 Turning Insert VNMG332-FF2 TP1501 Carbide

Product Description

The SECO 02960042 is a solid carbide turning insert in the VNMG-FF2 series, designed for precision metal cutting in CNC lathe and turning center applications. This insert carries the TP1501 manufacturer grade and features a multilayer CVD Duratomic coating — TiCN, Al2O3, and Cr — that delivers thermal resistance and extended tool life during steel and cast iron machining. The insert has a 35-degree diamond shape (V), a negative rake angle, a 3/8 inch inscribed circle, and a 1/32 inch corner radius. Four usable cutting edges make this a multi-tipped insert, reducing cost per edge in production environments.

This insert is suited for general-purpose CNC turning operations on steel (ISO P) and secondary workpiece materials including cast iron and hard materials (ISO K and H). The FF2 chip breaker geometry supports finishing and fine finishing applications. Typical operations include back turning, facing, profiling, and straight turning. It is intended for use with toolholders that accept clamp, pin, or lever lock holding methods on VNMG-style inserts. The TP1501 grade targets P10 and P20 material grade classifications, making it well-suited for continuous to lightly interrupted cuts in carbon and alloy steels.

Key Features

• Multilayer CVD Duratomic coating: TiCN, Al2O3, and Cr for wear resistance and thermal stability
• FF2 chip breaker geometry optimized for finishing and fine finishing cuts
• Four cutting edges per insert (multi-tipped) for lower cost per edge
• 35-degree diamond insert shape with negative rake and honed cutting edge style
• Compatible holding methods: clamp, pin, and lever lock
• Meets ANSI and ISO standards; ISO code VNMG160408-FF2

Compatibility

Designed for VNMG-style toolholders that accept clamp, pin, or lever lock insert retention. Primary workpiece material is steel (ISO P, grades P10 and P20); secondary materials are cast iron (ISO K) and hard materials (ISO H). Multi-use applications include back turning, facing, profiling, and turning.

Installation Notes

Installation is performed by a machinist or CNC tooling technician following standard insert indexing procedures. Ensure the machine spindle is fully stopped and the turret is locked before seating or indexing the insert. Verify that the toolholder pocket and seating surface are clean and free of chips before clamping. Follow the toolholder manufacturer torque and clamping specifications for the selected holding method — clamp, pin, or lever lock.
