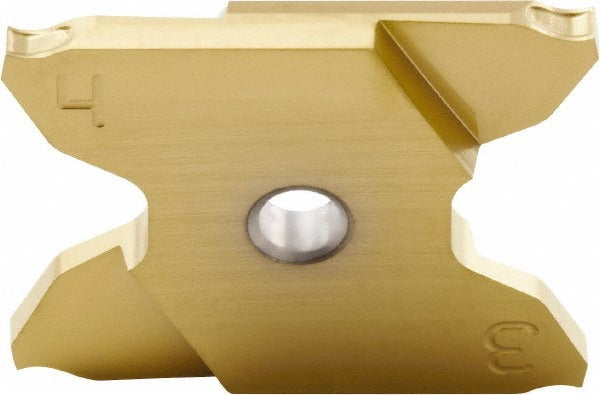

Seco 02822998 Grooving Insert X4GK CP600 Solid Carbide

Product Description

The SECO 02822998 is a solid carbide grooving insert in the X4 series, designed for precision grooving and parting operations on CNC lathes and turning centers. This double-ended insert carries a CP600 manufacturer grade with a TiAlN (Titanium Nitride) PVD coating, delivering strong wear resistance and thermal stability across a wide range of workpiece materials. The cutting width is 0.020 inches with a maximum depth of cut of 0.102 inches, and the corner radius measures 0.002 inches. It uses a clamp-style holding method and features a neutral hand orientation with a 6-degree rake angle and an MC chip breaker geometry. Installation and tool changes are handled by machinists and CNC tooling technicians.

This insert is suited for universal material applications, including steel, stainless steel, cast iron, non-ferrous alloys, heat-resistant superalloys, and hardened materials, as indicated by the primary workpiece material codes H, K, M, N, O, P, and S per ISO classification. It fits X4-series grooving toolholders that accept the 2503005 insert size code. Typical use cases include external and internal grooving, face grooving, and cut-off work on production and job-shop turning equipment. The double-end design provides two usable cutting edges per insert, reducing tooling cost per operation.

Key Features

• Solid carbide fine-grain substrate for rigidity and edge stability
• TiAlN PVD coating for extended tool life across diverse workpiece materials
• Double-ended design provides two cutting edges per insert
• MC chip breaker geometry promotes reliable chip control during grooving operations
• Neutral hand orientation and 6-degree rake angle for versatile setup configurations
• Clamp-style holding method ensures secure seating under interrupted-cut and high-feed conditions

Compatibility

Designed for use with X4-series grooving toolholders that accept the 2503005 insert size. Compatible with workpiece materials classified under ISO material groups H, K, M, N, O, P, and S.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or replacing any insert. Verify the insert pocket and clamping surfaces are clean and free of debris before securing the clamp. Consult the toolholder manufacturer torque and clamping specifications for the X4-series insert pocket to ensure correct seating.
