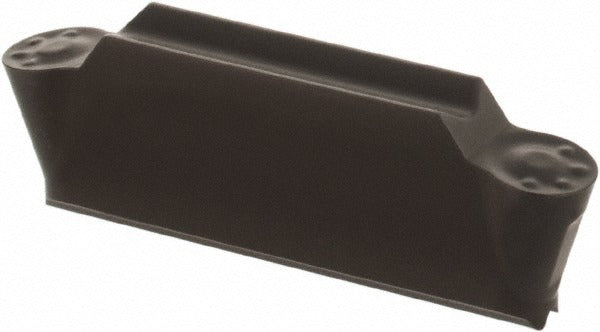

Seco 02815029 Turning Insert TGK1500 Solid Carbide Lcmf

Product Description

The SECO 02815029 is a solid carbide multi-directional turning insert designed for precision grooving and turning operations on CNC and manual lathes. Manufactured to the LCMF insert style in size code 1603M0, this dog bone-shaped insert features a 0.118 inch maximum cutting width, a 0.177 inch cutting height, and a 0.059 inch corner radius. The MP chipbreaker geometry supports controlled chip formation across a range of depths and feed rates. With a relief angle of zero degrees, the insert is suited for applications requiring a rigid, square shoulder engagement. Licensed machinists and CNC operators install this insert in compatible LCMF-style toolholders.

This insert is rated for primary and secondary workpiece material code K, indicating suitability for cast iron, hardened steel, and other short-chip materials. It fits multi-directional turning applications in production machining environments, including automotive, aerospace, and general metalworking shops. The TGK1500 grade designation reflects a carbide substrate and coating combination engineered for wear resistance in interrupted and continuous cuts. The manufacturer catalog number for this insert is LCMF1603M0-0300-MP. Typical applications include external and internal grooving, parting, and profile turning where tight dimensional control is required.

Key Features

• Solid carbide construction for extended tool life in short-chip materials
• Dog bone shape in LCMF insert style for multi-directional cutting capability
• MP chipbreaker geometry for reliable chip control at moderate feeds
• 0.059 inch corner radius reduces stress concentration at the cutting edge
• Zero-degree relief angle provides a rigid, stable cutting platform
• TGK1500 manufacturer grade optimized for cast iron and hardened workpiece materials

Compatibility

Designed as an OEM-style replacement or production insert for toolholders accepting LCMF-style, dog bone-shaped turning inserts in size 1603M0.

Installation Notes

Installation of turning inserts should be performed by a qualified machinist with the machine spindle fully stopped and locked out per facility lockout/tagout procedures. Use the correct torque wrench and insert clamp hardware specified for LCMF-style toolholders to avoid cracking the carbide substrate. Inspect the insert pocket and seating surface for chips or debris before seating the insert. Do not use damaged or improperly seated inserts, as this can cause tool failure and workpiece damage.
