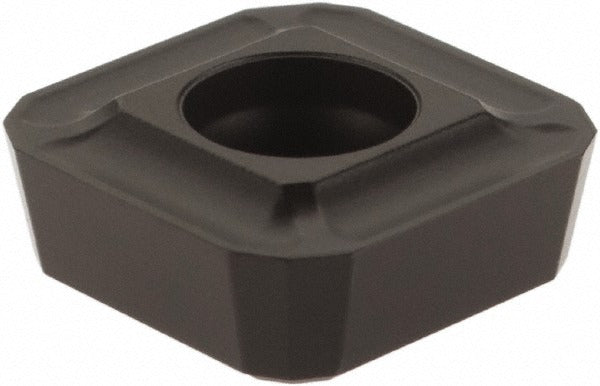

Seco 02807370 Indexable Drill Insert SPGX09C1 DP3000

Product Description

The SECO 02807370 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drills. Featuring the SPGX insert style with a C1 chipbreaker, this insert carries the DP3000 manufacturer grade and is finished with a Duratomic coating process for extended tool life in demanding drilling applications. The square 90-degree geometry with an 11-degree relief angle promotes clean chip formation and stable cutting performance. At 0.375 inches inscribed circle diameter and 0.125 inches thickness, it is engineered for precision fit in compatible Perfomax drill bodies. Installation is performed by machinists and tooling technicians in CNC and manual drilling operations.

This insert is suited for universal primary workpiece material applications, covering material codes K, M, N, and P, which correspond to cast iron, stainless steel, non-ferrous materials, and steel. The right-hand cutting direction makes it appropriate for standard spindle rotation setups. Typical use cases include through-hole and blind-hole drilling in production machining environments, both in shop and field-adjacent toolroom settings. The Duratomic coating supports consistent performance across a broad range of workpiece materials without requiring frequent insert changes.

Key Features

• DP3000 grade solid carbide construction with Duratomic coating for extended wear resistance
• SPGX insert style with C1 chipbreaker for controlled chip evacuation during drilling
• 90-degree square geometry with 11-degree relief angle for stable cutting action
• Universal material compatibility covering cast iron, stainless steel, non-ferrous, and steel (K, M, N, P codes)
• Right-hand cutting direction for standard CNC and manual drill configurations
• Perfomax series fitment ensures direct drop-in replacement within compatible drill bodies

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies that accept SPGX09 size inserts with insert size code 09. No additional compatible model numbers were specified in the product data.

Installation Notes

Insert seating and torquing should be performed by a qualified machinist or tooling technician following the drill body manufacturer's torque specifications for the applicable clamping screw. Power down and lock out the spindle before changing inserts. Inspect the insert pocket for debris, damage, or wear before seating the new insert. Do not exceed the recommended cutting parameters for the DP3000 grade as specified in SECO tooling documentation.
