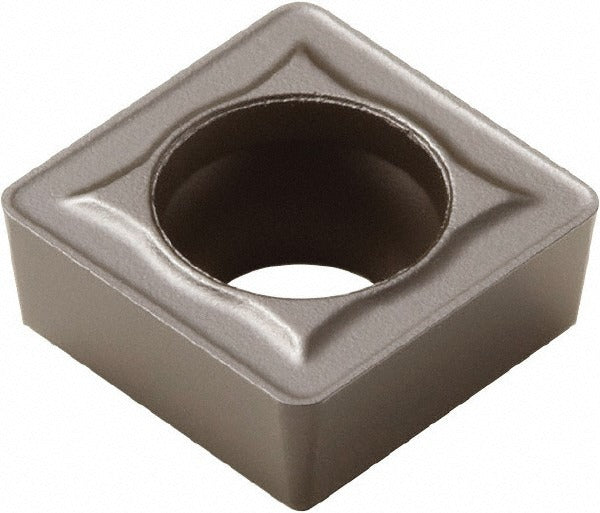

Seco 02807361 SCGX15P2 DP3000 Indexable Drill Insert

Product Description

The SECO 02807361 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drill bodies. This insert uses the SCGX style in grade DP3000 with a Duratomic coating process for extended tool life across a wide range of workpiece materials. The square 90-degree geometry with a P2 chipbreaker promotes controlled chip formation during drilling operations. The insert measures 0.6250 inches inscribed circle diameter and 0.2190 inches thick, making it a precision ground component suited to high-productivity drilling applications. Installation is performed by qualified machinists or toolroom technicians.

This insert is rated for universal primary workpiece material compatibility, covering material codes H, K, M, P, and S. That range includes steel, stainless steel, cast iron, non-ferrous materials, and heat-resistant superalloys. It is most commonly used in production drilling environments on CNC machining centers and turning centers where repeatable hole quality and insert indexability are required. The Perfomax series platform is a common choice in high-volume manufacturing and job shop applications where downtime for tool changes must be minimized.

Key Features

• SCGX insert style with 90-degree square geometry and P2 chipbreaker for controlled chip evacuation
• DP3000 grade with Duratomic coating process for wear resistance across multiple material types
• Universal workpiece material compatibility covering material codes H, K, M, P, and S
• 0.6250-inch inscribed circle diameter and 0.2190-inch thickness for precise fit in Perfomax drill bodies
• 0.0470-inch corner radius reduces cutting edge stress at entry and exit
• Insert size code 15 with size designation 150512 for straightforward replacement identification

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies accepting SCGX insert style with insert size code 15. Verify drill body insert pocket specifications before ordering to confirm fitment.

Installation Notes

Insert replacement should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before accessing the tool body. Use the correct torx or hex key as specified by the drill body manufacturer when seating the insert to avoid pocket damage. Do not force a misaligned insert into the pocket, as this can damage the seating surface and affect hole accuracy.
