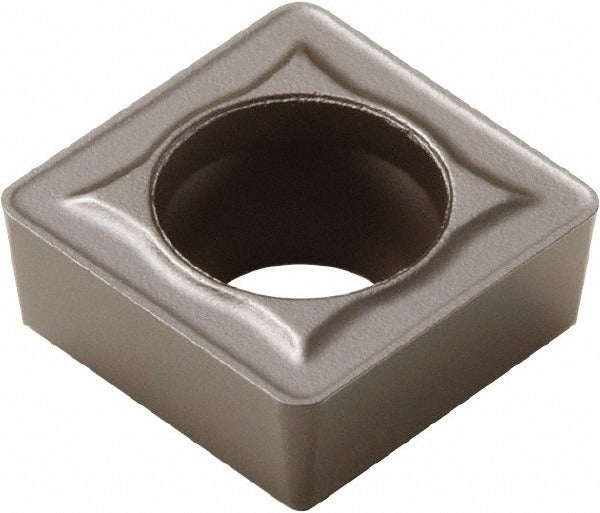

Seco 02807358 SCGX07P2 DP3000 Indexable Drill Insert

Product Description

The SECO 02807358 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drilling systems. Designated insert style SCGX07P2 with manufacturer grade DP3000, this insert features a square shape with a 90-degree included angle and a 7-degree relief angle. The Duratomic coating process provides a coated finish suited for demanding drilling operations. With an inscribed circle of 0.3120 inches and a corner radius of 0.0310 inches, the insert delivers precise cutting geometry. Licensed trades and machining professionals install these inserts as part of high-productivity drilling tooling assemblies.

The 02807358 insert is rated for universal primary workpiece material compatibility, covering material codes H, K, M, P, and S. This makes it applicable across a broad range of materials in industrial machining environments, including ferrous metals, stainless steels, and cast materials. The P2 chipbreaker geometry is optimized to manage chip formation across these varied workpiece types, supporting consistent hole quality in both manual and CNC drilling applications.

Key Features

• Insert style SCGX with 90-degree included angle and 7-degree relief angle
• Manufacturer grade DP3000 with Duratomic coating process for wear resistance
• P2 chipbreaker geometry for controlled chip evacuation across universal workpiece materials
• Solid carbide substrate for rigidity and thermal stability at elevated cutting speeds
• Compatible with Perfomax series indexable drill bodies
• Inscribed circle of 0.3120 inches and corner radius of 0.0310 inches for precise fit and geometry

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies requiring SCGX insert style, size code 07, across material groups H, K, M, P, and S as specified by the manufacturer.

Installation Notes

Insert installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Use the correct torx or hex key as specified by the Perfomax drill body documentation to achieve proper clamping without over-torquing the insert screw. Inspect the insert pocket and clamping mechanism for wear or debris before seating a new insert.
