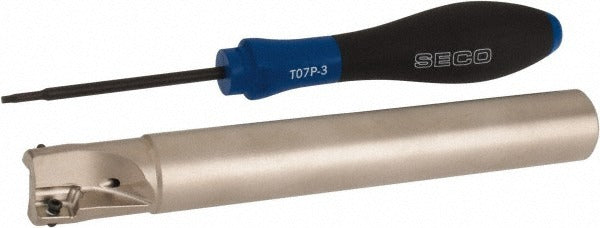

Seco 02772636 Indexable Square-shoulder End Mill 3/4 in

Product Description

The SECO 02772636 is an indexable square-shoulder end mill designed for high-accuracy milling operations in metal cutting and machining environments. Built on the Turbo 10 platform, this toolholder accepts XO.X 10T3.. insert style inserts and uses a screw-based insert holding method for secure, repeatable seating. The steel body features a 3/4 inch cylindrical shank and delivers a 90-degree lead angle with a negative rake geometry. Through-coolant capability allows direct delivery of coolant to the cutting zone, supporting longer tool life and better chip evacuation. It is suited for CNC machining centers where precision shoulder milling is required.

This end mill is used in production and job-shop milling applications where square shoulders and flat floor finishes are required. The Turbo 10 series is configured for light to medium-duty indexable milling on machining centers running at speeds up to 26,300 RPM. The 2-flute, 2-insert configuration and 0.354 inch maximum depth of cut make it well-suited for moderate axial engagement passes in steel and similar materials. Installation and insert changes are performed by machinists and CNC tooling technicians.

Key Features

• 90-degree lead angle for true square-shoulder milling
• Through-coolant design for direct cutting zone cooling and chip evacuation
• Accepts XOEX and XOMX compatible XO.X 10T3.. insert style
• Screw-held insert mounting for repeatable indexing and secure clamping
• Negative rake geometry for stable cutting in steel applications
• Maximum spindle speed of 26,300 RPM for high-productivity passes

Compatibility

Compatible with XOEX and XOMX insert families using XO.X 10T3.. insert style. ISO toolholder number R217.69-00.750-0-10-2A. Designed for use on CNC machining centers accepting a 3/4 inch cylindrical shank toolholder.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the spindle is fully powered down and the machine is in a safe lockout state before mounting or changing inserts. Use the appropriate Torx or hex key for insert screw torque as specified by the insert manufacturer documentation. Verify shank seating and runout with a dial indicator before commencing cuts.
