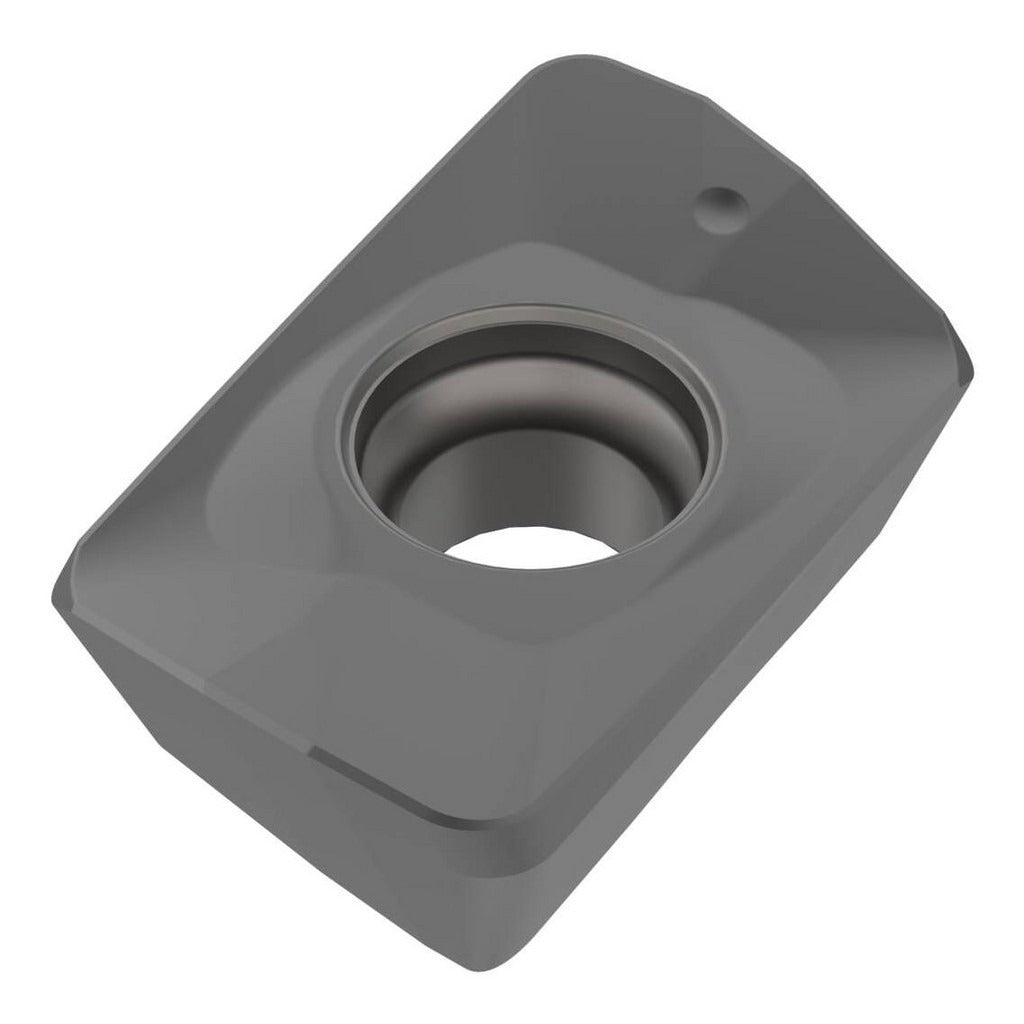

Seco 02768570 Milling Insert MK1500 Solid Carbide

Product Description

The SECO 02768570 is a solid carbide milling insert designed for precision metal removal in milling applications. Carrying the ANSI and ISO designation XOMX10T304TR-M09, this single-sided, right-hand insert features a parallelogram shape with a 90-degree included angle and a positive rake geometry at 10.6 degrees. The cutting edge is ground to a T-Land style for improved edge stability. It is coated with TiCN and Al2O3 via a CVD Duratomic process, delivering wear resistance suited to demanding cutting conditions. With a maximum depth of cut of 0.3661 inches and a cutting edge effective length of 0.3661 inches, this insert is installed by machinists and tooling technicians on compatible milling cutters.

This insert is engineered for primary use in cast iron workpiece materials (ISO material code K). The XOMX-10 series insert, size code 10T304, fits screw-type insert clamping systems. It is well suited to face milling and shoulder milling operations in production environments where cast iron components require consistent, repeatable surface quality. The M09 chip breaker geometry helps manage chip evacuation during cuts in this material class. It is sold individually and carries a minimum order quantity of one unit.

Key Features

• Solid carbide micrograin substrate for high hardness and edge retention
• CVD Duratomic TiCN and Al2O3 coating for thermal and wear resistance in cast iron cutting
• Positive rake angle (10.6 degrees) with T-Land cutting edge style for reduced cutting forces
• 15-degree relief angle for clearance in tight milling passes
• M09 chip breaker optimized for cast iron chip control
• Screw-held, right-hand, single-sided insert for secure clamping in compatible toolholders

Compatibility

Compatible with cutter series R217.69-10 and R220.69-10 as specified by the manufacturer. Insert size code is 10T304 within the XOMX-10 series.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Before changing inserts, ensure the milling machine spindle is fully stopped and locked out per applicable machine safety procedures. Use the correct torx or hex key torque driver specified by the toolholder manufacturer when seating the clamping screw — do not overtighten by hand estimation alone. Inspect the toolholder pocket and screw for debris or damage before seating the new insert.
