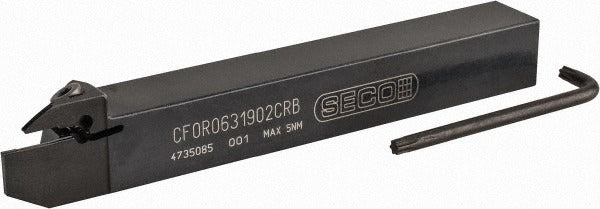

Seco 02748816 Indexable Turning Toolholder Cfor Mdt

Product Description

The SECO 02748816 is a right-hand indexable turning toolholder in the CFOR style, designed for external turning operations including cut-off and grooving applications. It uses a clamp-style insert holding method and accepts LC.. 1902.. series inserts with a compatible insert size code of LC1902. The shank measures 0.625 inches wide by 0.625 inches tall, with an overall length of 5 inches. Built from steel, this toolholder is part of the Multi-Directional Turning (MDT) series and is suited for a universal range of workpiece materials across multiple material group codes.

This toolholder is intended for use in CNC lathes and manual turning centers where cut-off and grooving operations are performed. Its 90-degree lead angle and right-hand cutting direction make it appropriate for standard external groove and parting work. The MDT series design supports multi-directional turning strategies, giving machinists flexibility in approach angle and feed direction on a variety of part geometries. It is appropriate for use in job shops and production environments handling steel, cast iron, stainless, non-ferrous, high-temperature alloys, and other universal workpiece materials.

Key Features

• CFOR toolholder style with 90-degree lead angle for cut-off and grooving operations
• Clamp-style insert retention compatible with LC.. 1902.. series inserts (LC1902)
• 0.625 inch square shank for rigid setup in standard boring bar or toolpost holders
• Maximum depth of cut of 1.02 inches for groove reach capability
• Steel construction for durability and vibration resistance in turning operations
• Multi-use designation supports universal workpiece material groups: H, K, M, N, P, S

Compatibility

Accepts LC.. 1902.. series indexable inserts with compatible insert size code LC1902. Insert width is 0.079 inches. Designed for use in turning setups that accommodate a 0.625 inch square shank toolholder.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. The machine spindle should be fully stopped and the machine powered down before mounting or adjusting any toolholder. Ensure the shank is fully seated and clamping screws are tightened to the machine tool manufacturer's specified torque before operation. Verify insert seating and clamp engagement before taking any cut.
