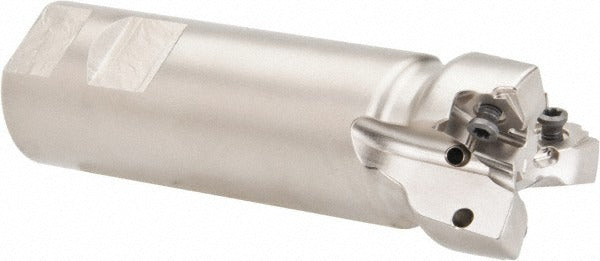

Seco 02642818 Square-shoulder End Mill 1-1/2 in 3 Flute

Product Description

The SECO 02642818 is an indexable square-shoulder end mill designed for 90-degree shoulder milling operations in ferrous and non-ferrous materials. Built around the R217.96 cutter style, this tool accepts three XNEX 0806-series inserts secured by screw-clamping and delivers a maximum depth of cut of 0.295 inches at a cutting diameter of 1.5 inches. The 4.5-inch overall length and 1.25-inch Weldon Flat shank provide rigid setup in standard end mill holders. Through-coolant capability directs fluid directly to the cutting zone, supporting higher feed rates and extended insert life. Rated to 11,800 RPM, this tool suits CNC machining centers where consistent square shoulders and clean floor finishes are required.

This end mill is intended for use on CNC vertical and horizontal machining centers in production and job-shop environments. The 90-degree lead angle makes it well suited for stepping, slotting, and shoulder profiling operations. The Weldon Flat shank diameter of 1.25 inches fits standard ER and Weldon-style tool holders. The three-insert configuration in the Square 6 series balances metal removal rate with smooth cutting action across a range of workpiece materials.

Key Features

• 90-degree lead angle for true square-shoulder milling
• Accepts three XNEX 0806-series indexable inserts with screw-clamping retention
• Through-coolant channels for direct flood delivery to the cutting zone
• Maximum RPM rating of 11,800 for high-speed machining center use
• Weldon Flat shank provides positive drive and minimal runout in standard holders
• Maximum depth of cut of 0.295 inches per pass

Compatibility

Designed for use with XNEX 0806-series indexable inserts. Shank fits standard 1.25-inch Weldon Flat end mill holders. Insert style and cutter series are specific to the R217.96 platform.

Installation Notes

Installation and tool changes should be performed by a qualified machinist or tooling technician with the machine in a powered-off, locked-out state. Confirm Weldon Flat set-screw engagement before any spindle operation. Verify insert seating and screw torque per the insert manufacturer tooling guide before running at rated RPM. Do not exceed the maximum RPM rating of 11,800 on any spindle setup.
