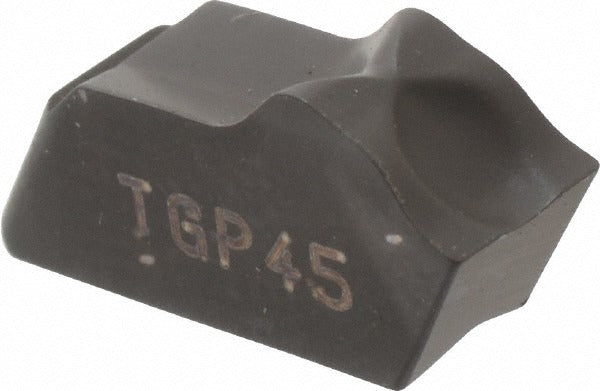

Seco 02636650 Carbide Cutoff Insert TGP45 Series 150.10

Product Description

The SECO 02636650 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It carries a TGP45 manufacturer grade with a CVD-applied Duratomic coating combining TiCN and Al2O3 layers for thermal resistance and wear protection. The insert has a cutting width of 0.161 inches and a corner radius of 0.009 inches, with a neutral lead angle suited to straight plunge cutting. It is a single-end insert held by clamp and belongs to SECO's Series 150.10 system. Machinists and toolroom technicians handling high-volume parting work will recognize the insert size code 4 seat designation and C5 material grade classification.

This insert is intended for cut-off applications on a universal primary workpiece material range, covering a broad spectrum of ferrous and non-ferrous stock. It fits into Series 150.10 compatible clamp-style cutoff toolholders and supports a maximum depth of cut of 3.00 mm. The neutral hand and neutral lead angle make it appropriate for standard OD parting setups where side forces must be minimized. Chipbreaker geometry is designated 14. This insert is sold individually but carries a minimum order quantity of 10 pieces.

Key Features

• Solid carbide substrate with CVD Duratomic TiCN and Al2O3 coating for extended tool life
• 0.161 inch cutting width with a tight width tolerance of plus or minus 0.003 inches
• 0.009 inch corner radius for controlled parting geometry
• Neutral lead angle and neutral hand — compatible with straight plunge cut-off operations
• C5 material grade classification suitable for universal workpiece materials
• Clamp-style insert holding, size code 4 seat, Series 150.10 system

Compatibility

Designed for use with Series 150.10 clamp-style cutoff and grooving toolholders that accept an insert seat size 4. No additional specific model compatibility data was provided in the product record.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The machine spindle must be brought to a full stop and all motion locked out before seating or removing the insert. Ensure the clamp and toolholder pocket are free of chips and debris before seating the insert, as contamination under the insert base can cause breakage under cutting load. Verify that the toolholder series and seat size match this insert before engaging a cut.
