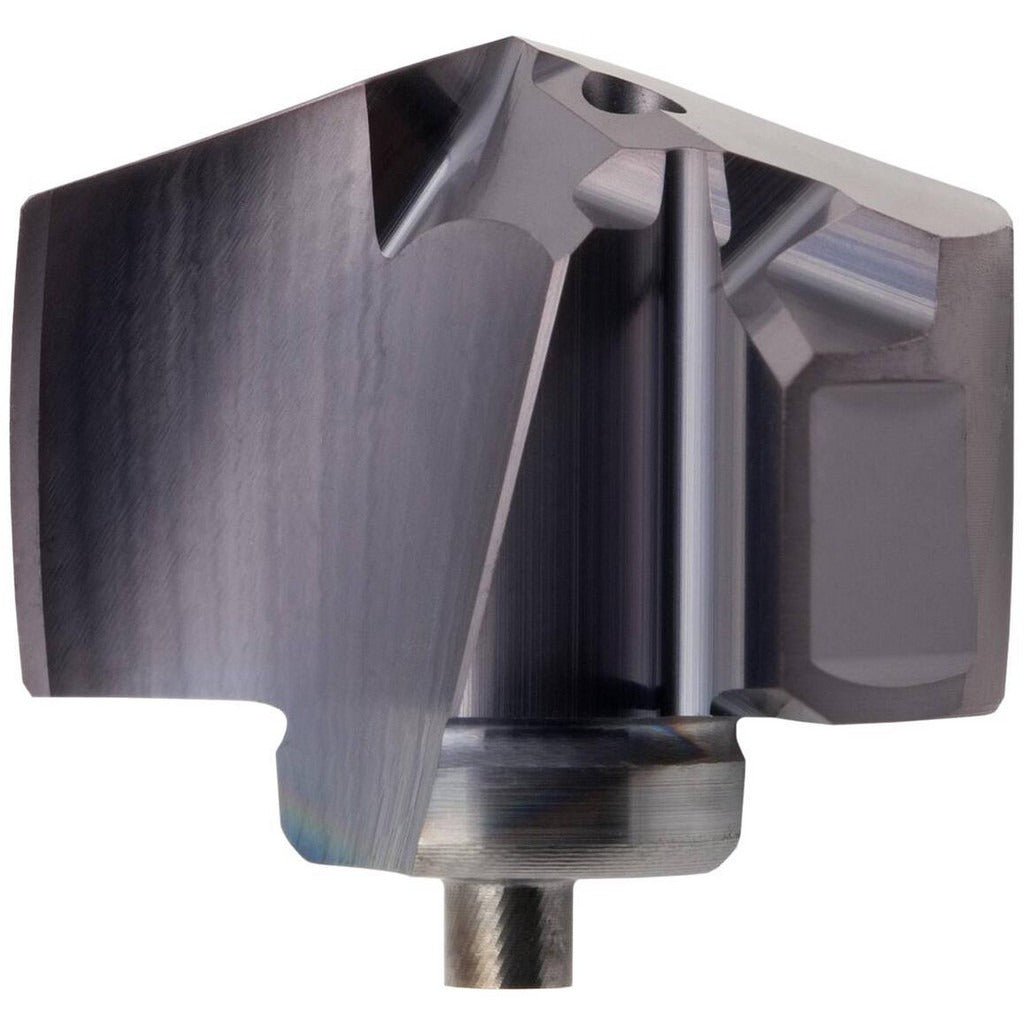

Seco 02634603 Replaceable Drill Tip 0.6004 in 140 Deg

Product Description

The SECO 02634603 is a replaceable drill tip designed for use with compatible Crownloc Plus modular drill bodies. The tip is manufactured from solid carbide and features a 140-degree point angle with a standard point type and regular helical spiral. The cutting diameter measures 0.6004 inches (15.00 mm). The bright/uncoated finish is applied via PVD process. Insert geometry is classified as P, and the tip is secured using a clamp-style holding method. This tip is installed by machinists and tool-and-die or maintenance professionals working with modular drilling systems on CNC or manual machining equipment.

This replaceable drill tip is suited for drilling operations in steel, stainless steel, cast iron, and hard materials, corresponding to ISO workpiece material codes P, M, K, and H. The Crownloc Plus series is intended for production and maintenance machining environments where tip replacement without removing the drill body from the spindle reduces changeover time. Coolant-through capability is not available on this tip. The two-flute helical design supports chip evacuation in a range of metalworking applications.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous and hard materials
• 140-degree point angle for reduced thrust and accurate entry on steel and stainless steel
• Bright/uncoated finish applied via PVD process
• Two-flute regular helical design supports chip flow during drilling
• Clamp-style insert holding for repeatable tip positioning
• Compatible with ISO designation SD400-15.25-P Crownloc Plus drill bodies

Compatibility

Designed as a replaceable tip for Crownloc Plus series modular drill bodies with ISO number SD400-15.25-P. Verify drill body series and shank size before ordering to confirm fitment.

Installation Notes

Tip replacement should be performed by a qualified machinist with the machine powered down and the spindle locked. Use the manufacturer-recommended torque wrench or key for the clamp mechanism — do not overtighten by hand or with improvised tools. Inspect the drill body seating pocket for debris or damage before installing a new tip. Follow your facility safety procedures and machine tool manufacturer guidelines during any tooling change.
