Seco 02615936 Turning Insert DNMG433-MF4 TS2000 Carbide

Product Description

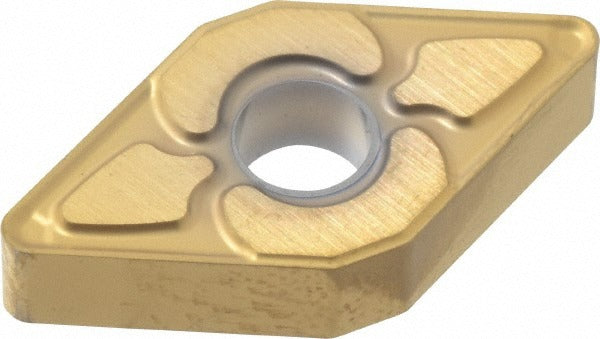

The SECO 02615936 is a DNMG433-MF4 series solid carbide turning insert with a TS2000 manufacturer grade and a multilayer PVD TiAlN/TiN coating. It features a 55-degree diamond insert shape, a 1/2-inch inscribed circle, and a 3/64-inch (0.0472 inch) corner radius. The MF4 chip breaker geometry uses a chamfered and honed cutting edge style designed for controlled chip formation in demanding materials. With four cutting edges and a neutral hand orientation, this insert suits turning, facing, boring, and back-turning operations on CNC lathes and turning centers. Installation is performed by licensed machinists and toolroom technicians.

This insert is engineered primarily for stainless steel and superalloys including titanium, aligning with ISO material codes M and S and material grades M05, M10, S10, and S15. It is also applicable as a secondary option on steel, cast iron, and hard materials (ISO codes P, K, H). The DNMG433-MF4 geometry and PVD coating combination make it well suited for finishing and semi-finishing passes where edge integrity and surface finish are critical. The insert conforms to both ANSI and ISO standards and carries ISO code DNMG150412-MF4 for cross-reference with international tooling catalogs.

Key Features

• TS2000 grade with multilayer PVD TiAlN/TiN coating for wear resistance in M and S workpiece materials
• MF4 chip breaker with chamfered and honed cutting edge for controlled chip formation in stainless and titanium
• 55-degree diamond insert shape (D) with negative rake and 0-degree relief angle (clearance code N)
• Four usable cutting edges with neutral hand orientation for versatile mounting
• Compatible with clamp, pin, and lever lock insert holding methods
• Meets ANSI and ISO standards; ISO code DNMG150412-MF4 for international cross-reference

Compatibility

Designed for use in DNMG-style toolholders accepting a 1/2-inch inscribed circle, 3/16-inch thick diamond insert with a 0.2028-inch hole diameter. Suitable for clamp, pin, and lever lock holding systems. Maximum depth of cut is 0.5630 inches. Industry standard number DNMG433-MF4 and ISO code DNMG150412-MF4 apply for toolholder compatibility verification.

Installation Notes

This insert is installed by machinists or toolroom technicians following machine tool manufacturer torque and clamping guidelines for the specific toolholder style in use. Power down and lock out the machine before seating or indexing any insert. Inspect the toolholder pocket and clamping hardware for wear or damage before installing a new insert. Follow shop safety procedures and applicable OSHA machine guarding requirements during any insert change.
