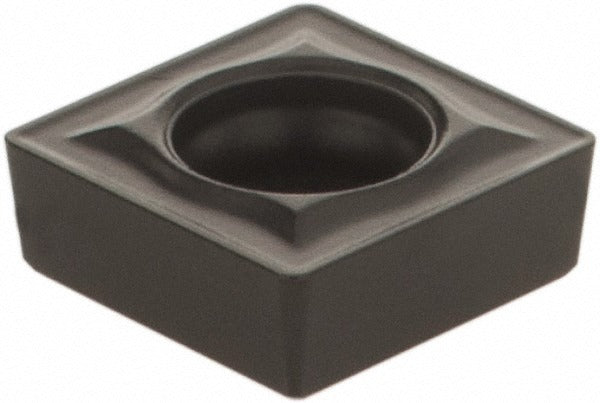

Seco 02590855 Indexable Drill Insert SCGX06P2 DP2000

Product Description

The SECO 02590855 is a solid carbide indexable drill insert designed for use in Perfomax series indexable drills. Carrying the SCGX06P2 designation, this insert features a square shape with a 90-degree included angle and a 7-degree relief angle. The DP2000 grade uses a Duratomic coating process, delivering a wear-resistant surface optimized for consistent cutting performance. The inscribed circle measures 0.2500 inches (6.35 mm), thickness is 0.0937 inches, and the corner radius is 0.0157 inches (0.40 mm). This insert is installed by machinist trades and CNC tooling professionals in production and job-shop environments.

The SECO 02590855 is rated for primary workpiece materials including cast iron (ISO K) and steel (ISO P). It is suited for drilling operations in both production machining and job-shop applications where consistent hole quality and insert longevity are required. The Perfomax series platform is a common choice in turning centers and machining centers running moderate-to-high feed drilling cycles. The P2 chipbreaker geometry supports reliable chip evacuation in these material classes. Minimum order quantity is 10 units; package quantity is 1.

Key Features

• Solid carbide substrate with Duratomic coating for wear and heat resistance in steel and cast iron
• DP2000 manufacturer grade optimized for ISO P and ISO K workpiece materials
• SCGX insert style with 90-degree square geometry and 7-degree relief angle
• P2 chipbreaker for controlled chip formation during drilling
• Inscribed circle of 0.2500 inches (6.35 mm), insert size code 06
• Compatible with Perfomax series indexable drill bodies

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies. Suitable for drilling cast iron and steel workpieces. Verify insert size code 06 and SCGX seat geometry match the target drill body before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key to the seat screw as specified by the drill body manufacturer — do not overtighten. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert.
