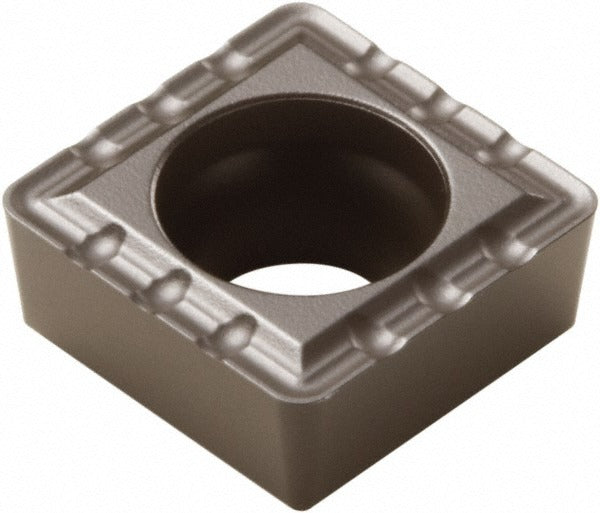

Seco 02590850 Indexable Drill Insert SCGX07P1 DP2000

Product Description

The SECO 02590850 is a solid carbide indexable drill insert designed for use in indexable drill bodies that accept SCGX-style inserts. Manufactured to the DP2000 grade with a Duratomic coating process, this insert delivers consistent cutting performance in steel applications. The square insert geometry features a 90-degree included angle, a 0.3125-inch inscribed circle, a P1 chipbreaker, and a 0.0315-inch corner radius. It belongs to the Perfomax series and is intended for installation by machinists and toolroom technicians working with CNC or manual drilling operations where indexable tooling is specified.

This insert is suited for drilling operations in steel workpieces, carrying a primary workpiece material code of P. It is sized at insert size code 07, with a 0.3125-inch inscribed circle and 0.1252-inch thickness, making it compatible with Perfomax series drill bodies requiring SCGX 070308 inserts. Typical applications include production drilling in ferrous materials on machining centers and CNC lathes in job shops, manufacturing facilities, and maintenance operations where consistent hole quality and tool life are priorities.

Key Features

• DP2000 grade with Duratomic coating for extended tool life in steel cutting
• Square SCGX insert geometry with 90-degree included angle
• P1 chipbreaker optimized for steel workpiece materials
• 0.3125-inch inscribed circle with 0.0315-inch corner radius for controlled chip formation
• Perfomax series designation ensures dimensional consistency for drop-in replacement
• Solid carbide substrate provides rigidity and wear resistance in demanding drilling cycles

Compatibility

Designed for use in Perfomax series indexable drill bodies accepting SCGX 070308 style inserts with a 0.3125-inch inscribed circle. Intended for steel cutting applications with primary workpiece material code P.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the drill body secured and the spindle fully de-energized before insert indexing or replacement. Use the appropriate torx or hex key specified by the drill body manufacturer to seat the insert clamp screw to the correct engagement without over-torquing. Inspect the insert pocket and clamping components for chips or debris before seating the new insert. Follow shop safety protocols and applicable OSHA machine guarding requirements when servicing rotating tooling.
