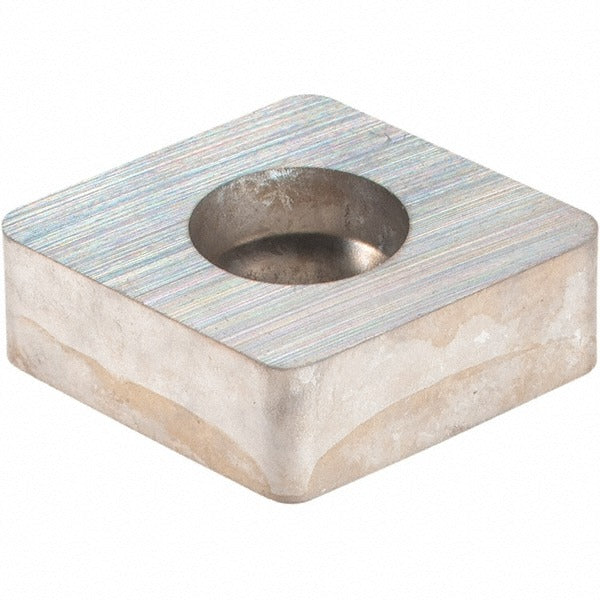

Seco 02587677 Indexable Anvil 0.625 in External Right Hand

Product Description

The SECO 02587677 is a replacement anvil for indexable toolholders, designed to seat and support indexable inserts during cutting operations. The anvil features a 0.625-inch insert inscribed circle and an external right-hand orientation, making it compatible with specific SECO toolholder configurations. It serves as a precision seating surface that protects the toolholder pocket from cutting forces and wear. Machinists and toolroom technicians install this component when replacing worn or damaged anvils during routine toolholder maintenance. Compatible anvil screw is C05010 T20P and the anvil key compatibility is T20P-7L.

This anvil is intended for use in external right-hand indexable turning applications. It fits toolholders sized for a 5/8-inch insert, corresponding to toolholder insert size code 5. Typical install scenarios include production turning operations where insert pocket components are replaced on a scheduled maintenance cycle to maintain consistent clamping and insert seating accuracy.

Key Features

• 0.625-inch insert inscribed circle for precise insert seating
• External right-hand orientation for right-hand turning toolholders
• Toolholder insert size code 5 (5/8 inch)
• Compatible with anvil screw C05010 T20P
• Compatible with anvil key T20P-7L
• OEM-style replacement component for indexable toolholder maintenance

Compatibility

Designed for use with SECO indexable toolholders requiring a size code 5 (5/8-inch) insert pocket with external right-hand orientation. Anvil screw compatibility: C05010 T20P. Anvil key compatibility: T20P-7L.

Installation Notes

Installation is performed by toolroom technicians or machinists during toolholder maintenance. Power down and lock out the machine before removing or installing any toolholder pocket components. Use the specified anvil key T20P-7L and anvil screw C05010 T20P to ensure proper seating and clamping force. Do not substitute non-specified screws or keys, as improper components can compromise insert seating and create a safety hazard.
