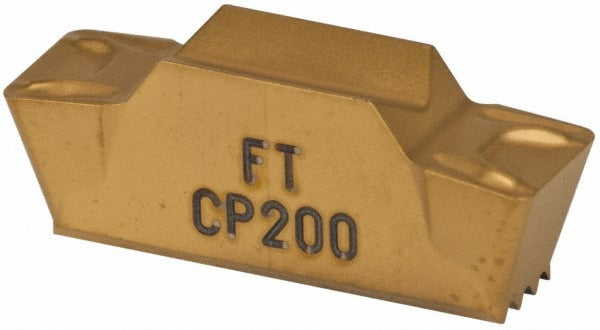

Seco 02580773 Turning Insert CP200 Solid Carbide Lcmf

Product Description

The SECO 02580773 is a solid carbide multi-directional turning insert designed for precision turning and grooving operations in metalworking applications. Built to the LCMF insert style in the MDT series, this insert carries a CP200 manufacturer grade with a micrograin carbide substrate and a PVD-applied TiAlN/TiN coating. The double-ended, neutral-hand design allows use in either cutting direction without retooling. Key dimensions include a 0.187-inch maximum cutting width, a 0.177-inch cutting height, a 0.630-inch insert length, and a 0.020-inch corner radius. The FT chipbreaker geometry is engineered to manage chip flow in continuous and interrupted cuts. Machining professionals and toolroom technicians install and service this insert type.

This insert is suited for CNC turning centers and manual lathes performing multi-directional turning, face grooving, and axial grooving on ferrous and non-ferrous workpiece materials. The MDT series platform targets applications requiring tight dimensional control at moderate to high cutting speeds. The LCMF style seats directly into compatible MDT toolholders. The neutral hand orientation makes it adaptable to both right-hand and left-hand toolholder setups, reducing inventory requirements in shops that run varied part geometries. The TiAlN/TiN finish supports elevated cutting temperatures typical in steel and stainless turning operations.

Key Features

• CP200 grade micrograin solid carbide substrate for edge strength and wear resistance
• PVD-applied TiAlN/TiN coating supports high cutting temperatures and extends tool life
• Double-ended design provides two usable cutting edges per insert
• Neutral hand orientation fits both right-hand and left-hand MDT toolholders
• FT chipbreaker geometry controls chip evacuation during grooving and turning passes
• 0.020-inch corner radius suits applications requiring controlled surface finish on shoulders and grooves

Compatibility

Designed for use with compatible MDT series toolholders accepting the LCMF insert style. Verify toolholder seat geometry and clamping system against the LCMF160505-A187-FT style designation before installation.

Installation Notes

Carbide turning inserts are installed and changed by machinists and toolroom technicians using manufacturer-specified torx or hex keys to seat and clamp the insert securely in the toolholder pocket. Always power down and lock out the spindle before changing inserts. Inspect the insert pocket seating surface for chips or debris that could cause improper seating and edge breakage. Handle solid carbide inserts carefully to avoid chipping the cutting edges prior to use.
