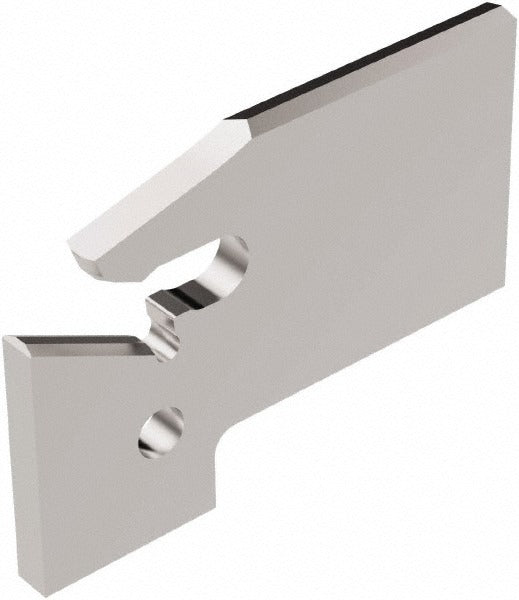

Seco 02578596 Indexable Cutoff Blade Series 150.10A

Product Description

The SECO 02578596 is a single-end, right-hand indexable cutoff blade designed for parting operations on CNC lathes and turning centers. It measures 0.61 inches in height, 0.134 inches in width, and 1.303 inches in overall length. The blade uses a self-grip insert holding method and accepts inserts with a minimum width of 0.161 inches and a corner radius of 0.009 inches. Built to ISO standards, it is sized for Insert Seat Size 4. This blade is the appropriate choice for machinists and toolroom technicians performing precision parting and grooving cuts on workpieces up to 1.5 inches in diameter.

The 02578596 is intended for use in metalworking environments where repeatable, accurate cutoff operations are required. It fits into Tool Block Style 150.10-15 and is part of the 150.10 series tooling system. Typical applications include production turning on CNC or manual lathes where quick insert indexing and consistent part-off performance are needed. The right-hand cutting direction suits standard spindle rotation setups commonly found in production and job-shop environments.

Key Features

• Self-grip insert holding method for secure insert seating without additional fasteners
• Accepts Series 150.10-4.. inserts with 0.161-inch insert width
• Compatible with Tool Block Style R/L150.10...-15
• Maximum workpiece diameter of 1.5 inches
• Conforms to ISO standards
• Single-end blade design for straightforward indexing and replacement

Compatibility

Compatible with Series 150.10-4.. inserts and Tool Block/Toolholder Style R/L150.10...-15. MSC/Manufacturer reference number R150.10A-15-4.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and all motion stopped. Ensure the blade is seated fully and squarely in the tool block before tightening. Verify insert seating and clamping integrity before resuming cutting operations. Follow the machine and tooling manufacturer guidelines for tool overhang and setup torque.
