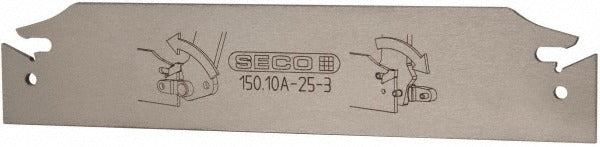

Seco 02578589 Double End Neutral Indexable Cutoff Blade

Product Description

The SECO 02578589 is a double-end, neutral-cutting indexable cutoff blade designed for parting and grooving operations on CNC lathes and turning centers. The blade measures 0.984 inches high, 0.094 inches wide, and 5.91 inches in overall length, with a minimum insert width of 0.122 inches. It uses a self-grip insert holding method for secure, repeatable insert indexing without additional clamping hardware. The blade accommodates a maximum depth of cut of 2.0 inches and a maximum workpiece diameter of 4.0 inches, making it suitable for a wide range of bar stock and chucked-part parting applications. ISO standards apply to this tool.

The 02578589 is intended for use in Series 150.10 tooling systems, mounted in a 150.10-25 tool block style. It suits both left-hand and right-hand cutting orientations, making it adaptable across multiple turret positions. Machinists and CNC operators performing production parting on steel, cast iron, aluminum, and similar workpiece materials will find this blade at home in high-volume turning environments. Compatible inserts are from the 150.10-3 series family, and it pairs with 150.10-...-25 series tool blocks as specified by the manufacturer.

Key Features

• Double-end blade design allows indexing to extend tool life
• Neutral cutting direction supports left-hand and right-hand applications
• Self-grip insert holding method provides secure insert retention without extra clamping
• Maximum depth of cut of 2.0 inches suitable for larger diameter parting operations
• Insert corner radius of 0.008 inches for precise, consistent parting geometry
• ISO-standard tooling for broad compatibility across turning system configurations

Compatibility

Designed for use with 150.10-3 series inserts and 150.10-...-25 series tool blocks and toolholders as specified by SECO. Tool block style 150.10-25 is the designated holder for this blade. Insert seat size is 3.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine before seating or indexing the blade or insert. Ensure the tool block is properly torqued to the turret per the machine tool manufacturer specifications before resuming cutting. Do not exceed the rated maximum workpiece diameter or depth of cut listed for this blade.
