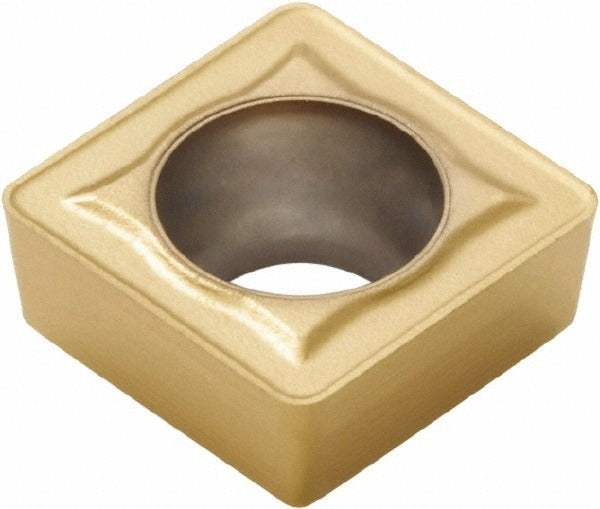

Seco 02568947 Scgx Indexable Drill Insert Solid Carbide

Product Description

The SECO 02568947 is a solid carbide indexable drill insert in the SCGX style, designed for use in indexable insert drills on CNC machining centers and production drilling operations. The insert carries manufacturer grade T400D and features a Physical Vapor Deposition (PVD) applied dual-layer coating of TiAlN and TiN for improved wear resistance and heat management at the cutting edge. With a 7.94 mm (0.3126 inches) inscribed circle and a 0.80 mm (0.0315 inches) corner radius, this square-profile insert is suited to high-feed drilling applications where edge security and coating durability are priorities. Machinists and tooling specialists install and index these inserts as part of routine tooling maintenance.

This insert is applicable to production and job-shop drilling environments using SCGX-style insert seats on compatible indexable drill bodies. The square shape and 7-degree relief angle make it appropriate for general-purpose hole-making in ferrous and non-ferrous materials. Insert size designation is 07, and the inscribed circle dimension of 7.94 mm governs seat compatibility. It is sold individually and is intended as a direct replacement or supplemental insert for drills already equipped with SCGX-seat toolholders.

Key Features

• Solid carbide substrate with T400D manufacturer grade for thermal and wear resistance
• Dual-layer TiAlN and TiN PVD coating for extended tool life at elevated cutting speeds
• Square SCGX insert style with 7-degree relief angle for positive cutting geometry
• 7.94 mm inscribed circle (0.3126 inches) for precise seat fit and repeatable indexing
• 0.80 mm corner radius (0.0315 inches) balances edge strength with surface finish
• Sold as individual insert, MOQ of 1 for flexible inventory replenishment

Compatibility

Designed for use in indexable drill bodies with SCGX-style insert seats sized for an 07 insert with a 7.94 mm inscribed circle. Confirm seat geometry and clamping configuration against the drill body manufacturer specifications before installation.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or tooling technician with the spindle locked and the machine powered down. Use a calibrated torque screwdriver appropriate for the insert screw specification of the drill body. Inspect the insert seat for chips or debris before seating the new insert, and confirm the insert is fully seated before resuming cutting operations. Follow the drill body manufacturer guidelines for clamping screw torque and insert orientation.
