Seco 02562574 Indexable Threading Toolholder Internal Rh

Product Description

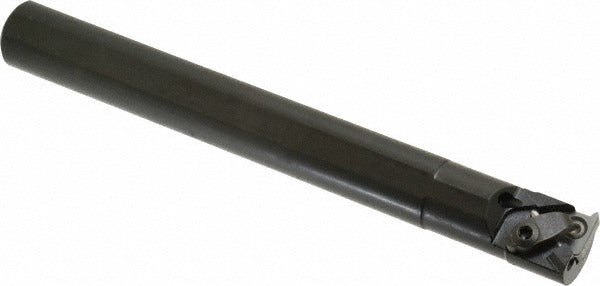

The SECO 02562574 is an indexable threading toolholder designed for internal threading and turning operations on CNC lathes and turning centers. It accepts two 16NR-style inserts and features a right-hand cutting orientation. The shank measures 0.65 inches in height and 0.707 inches in diameter, with an overall length of 6.693 inches. Coolant is delivered through an axial concentric entry port, directing fluid directly to the cutting zone for improved chip control and tool life. The insert is held by a clamp-style mechanism, providing rigid, repeatable positioning across indexing cycles. This toolholder belongs to the SECO Snap Tap series and is built from steel construction.

This toolholder is suited for internal threading and turning applications in both production and job-shop environments. It is typically installed in CNC turning centers by machinist-level trades or toolroom technicians. The minimum bore diameter it can reach is 0.95 inches, making it appropriate for medium-bore internal thread work. The insert inscribed circle is 3/8 inch, compatible with 16NR insert designations. The toolholder style is CN, and it supports multi-use configurations across threading and turning passes within the same setup.

Key Features

• Internal right-hand threading and turning in a single toolholder
• Accepts 16NR inserts with a 3/8-inch inscribed circle via clamp holding method
• Axial concentric coolant-through entry for directed cutting-zone coolant delivery
• Shank dimensions of 0.65 inches height by 0.707 inches diameter for rigid machine interface
• Minimum bore diameter of 0.95 inches for medium-bore internal applications
• Steel toolholder construction for durability in production turning environments
• Part of the SECO Snap Tap series supporting multi-use threading and turning operations

Compatibility

Compatible with 16NR series threading inserts using a 3/8-inch inscribed circle. The manufacturer cross-reference number is CNR/L 00075 7 to 16AHD. Designed for use in CNC lathes and turning centers that accept toolholders with a 0.65 x 0.707 inch shank profile.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician familiar with CNC turning center tooling setups. Ensure the machine spindle and turret are fully powered down and locked out before inserting or removing the toolholder. Verify insert seating and clamp torque per the machine tool manufacturer specifications before running the first part. Confirm coolant line connection at the axial port is secure and free of obstruction before enabling through-tool coolant flow.
