Seco 02505933 Milling Insert SPMX090304-75 F40M Carbide

Product Description

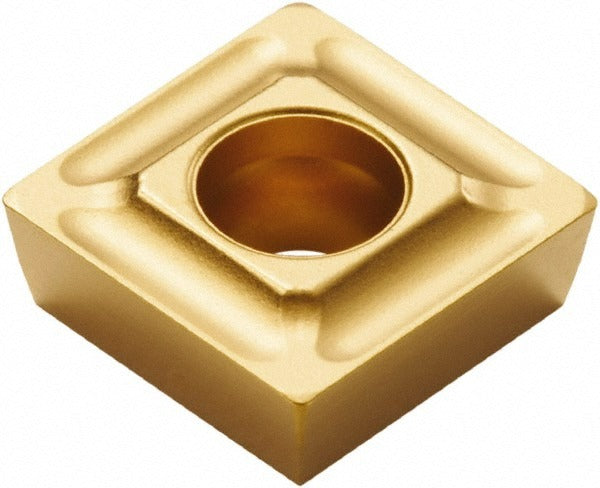

The SECO 02505933 is a solid carbide milling insert carrying ANSI and ISO designation SPMX090304-75 in manufacturer grade F40M. This single-sided, square-shaped insert is PVD-coated with TiAlN and TiN layers applied over a fine-grain carbide substrate, producing a hard, wear-resistant cutting surface suited for interrupted and continuous milling operations. The insert measures 3/8 inch in length and width with a thickness of 1/8 inch and features a 1/64-inch corner radius. With four cutting edges, a positive rake angle of 16 degrees, a T-Land cutting edge style, and an 11-degree relief angle, it is designed for efficient chip evacuation and reduced cutting forces across a range of workpiece materials. Licensed machinists and CNC mill operators install this insert as a replacement cutting edge in compatible SECO cutter bodies.

This insert is engineered for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, making it a versatile choice for job shops and production environments. It is held in the cutter body by a screw and is compatible with SECO cutter series R215.39, R215.49-3, and R417.19-3. The 09 insert size series and neutral hand orientation allow straightforward drop-in replacement when refitting compatible heads. Applications include face milling, shoulder milling, and copy milling operations on machining centers and CNC milling machines where fine-grain carbide grades are specified for demanding workpiece materials such as superalloys and titanium.

Key Features

• Solid carbide fine-grain substrate in manufacturer grade F40M for toughness and wear resistance
• PVD-applied TiAlN and TiN dual coating for heat and oxidation resistance at the cutting edge
• Four cutting edges per insert with neutral hand orientation for maximum value per unit
• Positive rake angle of 16 degrees and T-Land edge style reduce cutting forces and improve chip flow
• 1/64-inch corner radius and 0.3750-inch maximum depth of cut support precise shoulder and face milling
• Screw-held mounting for secure, repeatable positioning in compatible SECO cutter bodies
• Conforms to ISO standards; ANSI code and ISO code both SPMX090304-75

Compatibility

Designed for use in SECO cutter series R215.39, R215.49-3, and R417.19-3. Compatible with SPMX-09 series insert seats. Minimum order quantity is 10 units; package quantity is 1.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing inserts. Seat the insert firmly against all contact surfaces in the pocket before torquing the clamping screw; use the correct Torx or hex key specified by the cutter body documentation. Inspect the insert pocket and seating surfaces for chips or debris before installing a new insert to ensure proper seating and runout accuracy.
