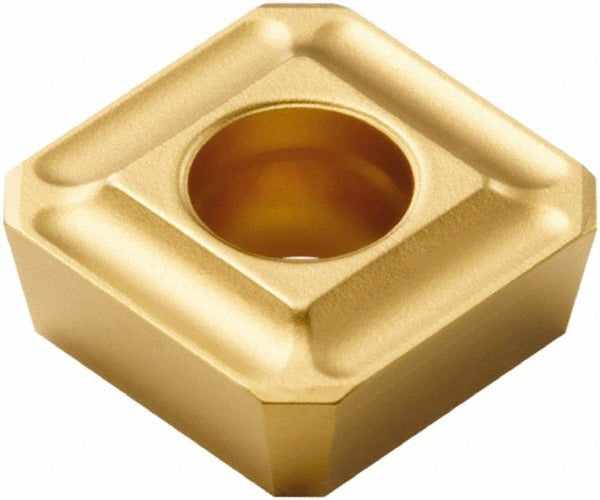

Seco 02493655 Milling Insert SPMX0903AP-75 F40M Carbide

Product Description

The SECO 02493655 is a solid carbide milling insert carrying the ANSI/ISO designation SPMX0903AP-75 in manufacturer grade F40M. It is a square-shaped, single-sided insert with a neutral rake and T-Land cutting edge style, designed for use in indexable milling cutters on CNC and manual milling machines. The insert features a PVD-applied TiAlN and TiN dual-coating on a fine-grain carbide substrate, delivering wear resistance and thermal stability across a broad range of workpiece materials. With four usable cutting edges, a 0.375 inch inscribed circle, and a 0.1252 inch thickness, this insert suits medium to finish milling passes at controlled depths of cut up to 0.375 inches.

This insert is intended for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It is well suited for production machining environments where consistent tool life and predictable edge performance are required across material transitions. The 75 chip breaker geometry supports controlled chip evacuation in face milling and shoulder milling applications. Machinists and CNC operators working in job shops, aerospace, and general manufacturing will find this insert appropriate for light to medium roughing and semi-finishing passes on the listed workpiece materials. Cutter compatibility is confirmed for SECO cutter series R215.39, R215.49-3, and R417.19-3.

Key Features

• Solid carbide fine-grain substrate with PVD TiAlN and TiN dual-coating for extended wear resistance
• Square insert shape with four cutting edges maximizes cost-per-edge value
• Neutral rake and T-Land cutting edge style suit a wide range of milling conditions
• 11-degree relief angle and 90-degree included angle support clean shoulder milling
• 75 chip breaker geometry promotes controlled chip formation on steel, cast iron, superalloys, and titanium
• Screw-held mounting with 0.1378 inch hole diameter for positive insert clamping

Compatibility

Confirmed compatible with SECO milling cutter series R215.39, R215.49-3, and R417.19-3. Insert style SPMX, size code 0903, ANSI and ISO designation SPMX0903AP-75.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the spindle before indexing or replacing inserts. Use the correct Torx or hex key specified by the cutter body manufacturer to seat the clamping screw — do not overtighten. Inspect the cutter pocket seating surface for chips or damage before seating the new insert to ensure proper edge geometry and runout.
