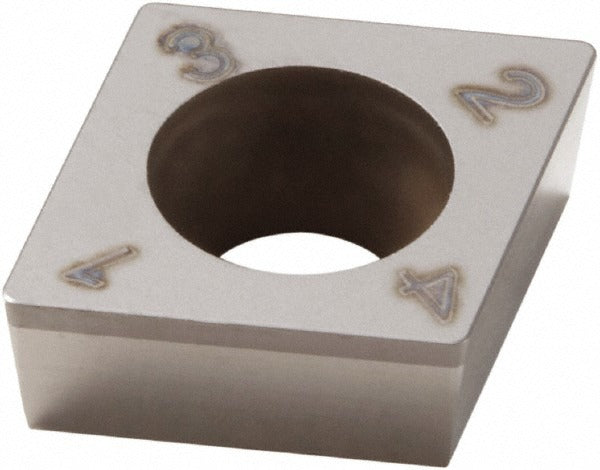

Seco 02464703 Ccgw Turning Insert Pcbn Diamond 80

Product Description

The SECO 02464703 is a Polycrystalline Cubic Boron Nitride (PCBN) turning insert in the CCGW 32.52S-00420-LF industry standard configuration. This uncoated, multi-tipped insert features a diamond 80-degree included angle, a 3/8-inch inscribed circle, and a 1/32-inch corner radius. It carries a chamfered and honed cutting edge with a flat-top chip breaker geometry and a positive rake angle. Designed for precision turning operations, the 02464703 is suited for machinists running high-speed finishing and semi-finishing passes on hard and abrasive workpiece materials. It is screw-held and runs neutral hand.

This insert is designed primarily for turning, boring, and facing applications on cast iron (ISO material group K) and is also rated for super-alloys, titanium, and hard materials (ISO material groups S and H). Its PCBN substrate and CBN200 manufacturer grade deliver the hardness and thermal stability needed for demanding continuous-cut and interrupted-cut scenarios in production machining environments. Licensed machinists and CNC operators in metalworking shops are the primary installers and users of this insert.

Key Features

• PCBN (Polycrystalline Cubic Boron Nitride) substrate, uncoated, manufacturer grade CBN200
• Diamond 80-degree insert shape with 7-degree relief angle and positive rake geometry
• Chamfered and honed cutting edge with flat-top chip breaker for controlled chip flow
• Two cutting edges per insert; multi-tipped construction maximizes usable life
• Screw-held mounting method compatible with standard CCGW-style toolholders
• Rated for turning, boring, and facing on cast iron, super-alloys, titanium, and hard materials

Compatibility

Designed as a CCGW-style replacement insert for toolholders accepting a CCGW 32.52 insert size. ISO equivalent designation is CCGW09T308S-01020-LF. Conforms to ANSI and ISO insert standards.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. De-energize and lock out the machine before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the toolholder manufacturer's specification. Inspect the insert pocket and seating surface for chips or debris before seating the new insert to ensure proper support and prevent edge chipping.
