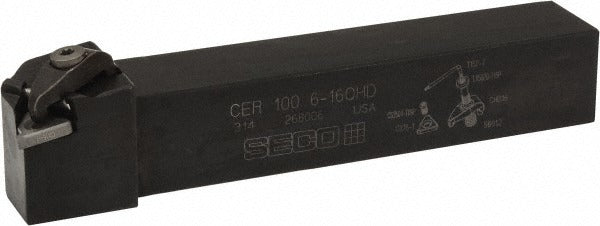

Seco 02462821 Threading Toolholder 1x1 Inch Shank

Product Description

The SECO 02462821 is an indexable threading toolholder designed for external threading and turning operations on metalcutting lathes and turning centers. Part of the Snap Tap series, this right-hand toolholder accepts 16ER inserts with a 3/8-inch inscribed circle and uses a clamp-style insert holding method for secure, repeatable positioning. The square shank measures 1 inch wide by 1 inch tall with an overall length of 6 inches, making it suited to standard tool block configurations on small to mid-size turning machines. A CE toolholder style and compatible insert size code of 1.5 round out the key specs. Coolant-through is not available on this holder.

This toolholder is used in external threading and turning applications across job shops, production machining environments, and maintenance facilities. The Snap Tap series is built for shops running threading cycles on CNC lathes and manual turning equipment. The right-hand orientation suits standard cross-slide approaches where the cutter feeds from right to left. Its multi-use design allows it to serve both threading and turning operations, reducing the number of dedicated holders required at the machine.

Key Features

• External threading and turning capability in a single holder
• Clamp-style insert retention for consistent edge indexing
• Accepts 16ER inserts with 3/8-inch inscribed circle
• Right-hand cut orientation for standard lathe setups
• CE toolholder style with compatible insert size code 1.5
• No coolant-through, simplifying setup on standard tool blocks

Compatibility

Designed for use with 16ER threading inserts with a compatible insert size code of 1.5 and a 3/8-inch inscribed circle, as specified by the manufacturer for this Snap Tap series CE-style toolholder.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machine spindle before mounting or indexing any toolholder. Seat the shank fully in the tool block or turret pocket and torque all clamping fasteners per the machine builder's specifications. Inspect the insert seat and clamp for wear before loading a new insert.
