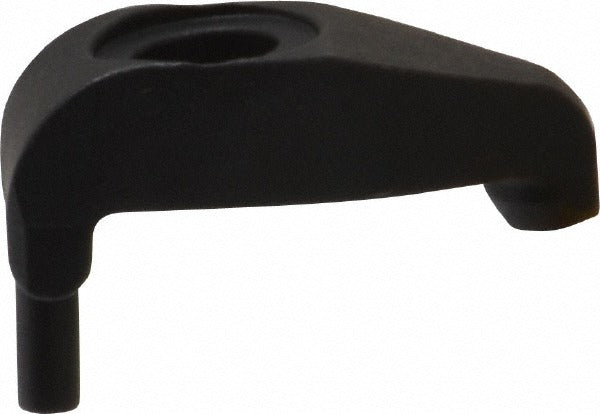

Seco 02462732 Chd Cantilever Clamp Indexable 187R

Product Description

The SECO 02462732 is a CHD-style cantilever clamp designed to secure indexable inserts in compatible turning and boring toolholders. Weighing 0.03 pounds, this clamp is built for use in precision metal cutting applications where consistent insert seating and clamping force are critical to tool performance and surface finish. It accommodates insert size 187R and supports both left-hand and right-hand cutting directions, making it a versatile component for shops running varied turning operations. Machinists and CNC toolroom technicians working with Seco-Capto and Snap Tap toolholder systems will find this clamp a direct-fit service replacement.

This clamp is suited for use in toolholder styles C-CEL, CEAR/L, CER/L, and CNR/L across both Seco-Capto and Snap Tap series systems. It fits residential machine shop, production turning, and job shop environments where indexable insert toolholders require periodic clamp replacement due to wear, damage, or loss. The CHD clamp style is a standard cantilever design that applies downward clamping force on the insert without obstructing the cutting zone.

Key Features

• CHD cantilever clamp style for consistent insert retention in indexable toolholders
• Compatible with insert size 187R
• Supports both left-hand and right-hand cutting directions
• Fits Seco-Capto and Snap Tap series toolholder systems
• Lightweight at 0.03 pounds for easy handling and storage
• Industry standard part number 02462732 for straightforward cross-reference

Compatibility

Compatible with toolholder styles C-CEL, CEAR/L, CER/L, and CNR/L within the Seco-Capto and Snap Tap series. Designed for use with insert size 187R in both left-hand and right-hand cutting configurations.

Installation Notes

Installation is typically performed by a machinist or CNC toolroom technician. Before replacing the clamp, ensure the machine spindle is fully stopped, the tool is removed from the turret or spindle, and the work area is clear. Use the appropriate torx or hex key as specified by the toolholder manufacturer when seating the clamp screw. Do not overtighten the clamp screw, as this can damage the insert seat or clamp body.
