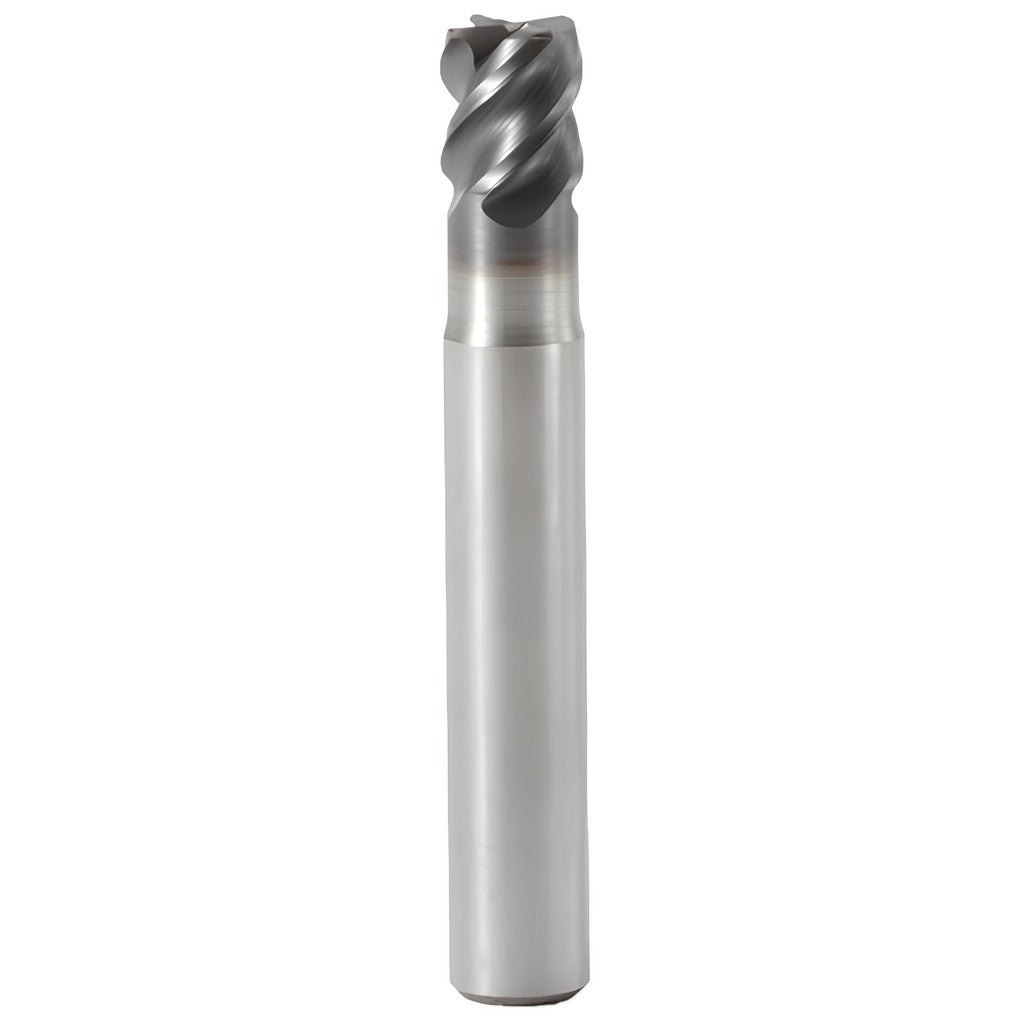

Seco 02462690 Corner Chamfer End Mill 8mm 4 Flute Solid Carbide

Product Description

The SECO 02462690 is a solid carbide corner chamfer end mill designed for high-performance metal removal in hard material applications. This single-end, 4-flute tool features an 8 mm cutting diameter, an 8 mm length of cut, and a 0.16 mm chamfer width at a 45-degree chamfer angle. The right-hand helical flutes run at a 50-degree high helix angle, and the tool carries a MEGA-64 PVD coating suited for extended tool life in demanding cuts. Centercutting geometry expands the range of entry strategies available to machinists. This tool is installed and used by CNC machinists and toolroom technicians working with hard workpiece materials.

The 02462690 is well suited for shouldering, slotting, ramp-down milling, helical interpolation, drill milling, and plunging and recessing operations. The extended reach design, with a 16 mm reach length and a reduced neck diameter of 7.40 mm, provides access in confined or deep-feature applications. Its short length-of-cut classification and normal pitch make it appropriate for both roughing and finishing passes in hard material, including hardened steels and similar alloys where MEGA-64 coating performance is most effective.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard material cutting
• MEGA-64 PVD coating provides thermal and abrasion resistance for extended tool life
• 45-degree chamfer angle with 0.16 mm chamfer width for consistent edge chamfering
• 50-degree high helix angle promotes efficient chip evacuation in deep cuts
• Centercutting design enables plunging, ramp-down, and helical interpolation entry
• Extended reach with 7.40 mm neck diameter for access to deep or confined features
• Maximum TIR of 0.01 mm ensures high-precision runout control

Compatibility

Designed as an OEM-specification solid carbide end mill in the SECO JHP170 series, intended for use in CNC machining centers and milling machines accepting 8 mm straight-cylindrical shank toolholders with shank tolerance h5.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. The machine spindle must be at a full stop and the control placed in an appropriate safe state before changing tooling. Use a precision collet chuck or hydraulic toolholder sized for an 8 mm shank to maintain runout within the tool TIR specification. Confirm tool overhang and reach requirements before tightening to avoid contact between the toolholder and workpiece fixture during extended-reach operations.
