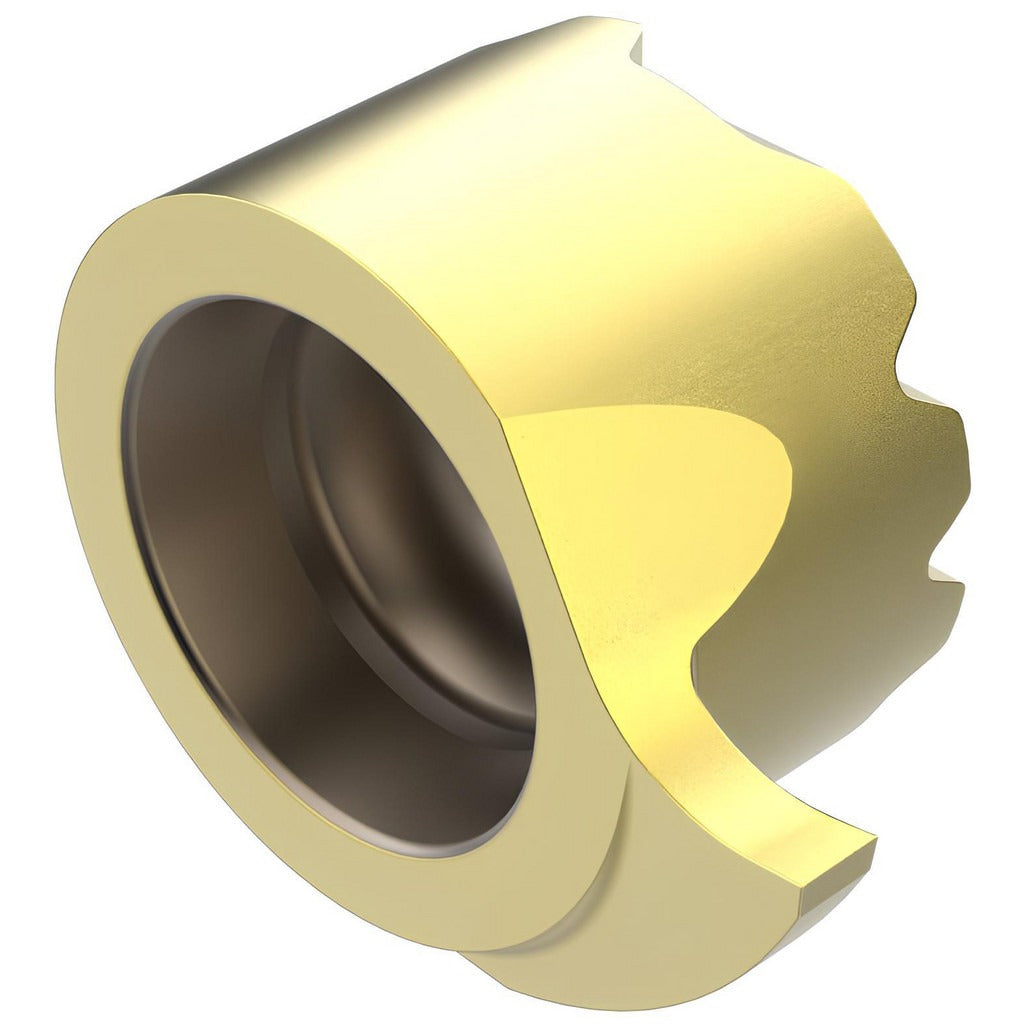

Seco 02410930 Turning Insert LCEX0804000085RFG Carbide

Product Description

The SECO 02410930 is a solid carbide turning insert designed for precision metal cutting on CNC lathes and manual turning centers. It features an LCEX insert style with an irregular 90-degree shape and a right-hand cutting orientation. The insert is PVD-coated with TiAlN and TiN layers, which extend tool life under demanding cutting conditions. Manufactured to SECO grade CP500 from micrograin carbide, it delivers consistent edge integrity and wear resistance. A screw-holding method keeps the insert securely seated in the toolholder during operation. This insert is used by machinists and toolroom technicians working in production and job-shop environments.

This turning insert suits applications where tight tolerances and controlled chip evacuation are required. The X chip breaker geometry manages chip flow effectively during external turning operations. With a maximum depth of cut of 0.0670 inches and an ISO code of LCEX080400-0085R-FG, it is suited for light to moderate roughing and finishing passes on a range of workpiece materials. It meets both ANSI and ISO standards, making it compatible with tooling setups in shops that follow either standard. Sold individually per package, with a minimum order quantity of 2.

Key Features

• PVD-applied TiAlN and TiN dual coating for extended wear resistance
• Micrograin carbide substrate at SECO grade CP500 for edge toughness
• LCEX insert style with 90-degree irregular shape and right-hand cutting
• X chip breaker geometry for controlled chip evacuation
• Screw-mount holding method for positive, repeatable insert seating
• Compliant with ANSI and ISO insert standards

Compatibility

Designed as an OEM-style replacement or direct-use turning insert for toolholders accepting LCEX-style inserts conforming to ANSI and ISO standards. Verify toolholder pocket geometry and screw-clamp compatibility before installation.

Installation Notes

This insert is installed by qualified machinists or toolroom technicians familiar with indexable insert tooling. Power down and de-energize the machine spindle completely before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the toolholder manufacturer's specified feel — do not overtighten. Inspect the insert pocket for chips or debris before seating the new insert to ensure full, flat contact.
