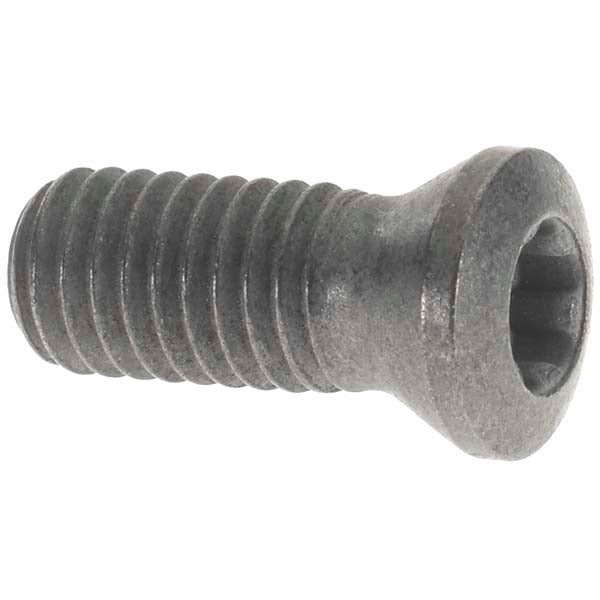

Seco 02409608 Lock Screw TP20 M5 Milling Turning Insert

Product Description

The SECO 02409608 is a countersunk lock screw designed to secure indexable inserts in milling and turning toolholders. It features a Torx Plus TP20 drive and an M5 thread, delivering the precise clamping force needed to hold carbide inserts firmly during cutting operations. At 13.00 millimeters in overall length, the screw is sized for standard insert pockets that call for an M5 fastener. Toolroom technicians and machinists install this screw as a replacement or consumable component when lock screws become worn, stripped, or lost during routine insert changes.

This lock screw is suited for use in indexable milling and turning toolholders that accept an M5 countersunk lock screw with a TP20 Torx Plus drive. It is compatible with insert style C05013-T20P and is a practical stock item for shops running high-volume indexable tooling programs. Packaging quantity is one screw per package, with a minimum order quantity of ten units.

Key Features

• Torx Plus TP20 drive for positive engagement and reduced cam-out during tightening
• M5 thread size fits standard indexable milling and turning insert pockets
• Countersunk head design seats flush within the insert pocket
• 13.00 millimeter overall length for proper pocket depth engagement
• Compatible with insert style C05013-T20P
• Sold individually, ordered in multiples of ten

Compatibility

Compatible with indexable milling and turning toolholders requiring an M5 countersunk lock screw with a TP20 Torx Plus drive. Specified compatible insert style is C05013-T20P.

Installation Notes

Lock screw installation and replacement is performed by machinists or toolroom technicians during routine insert indexing or changeover. Always use a calibrated Torx Plus TP20 key to avoid rounding the drive recess. Do not use standard Torx keys in place of Torx Plus keys, as the drive geometry differs. Inspect the screw threads and pocket threads for wear or damage before reinstalling to prevent insert movement during cutting.
