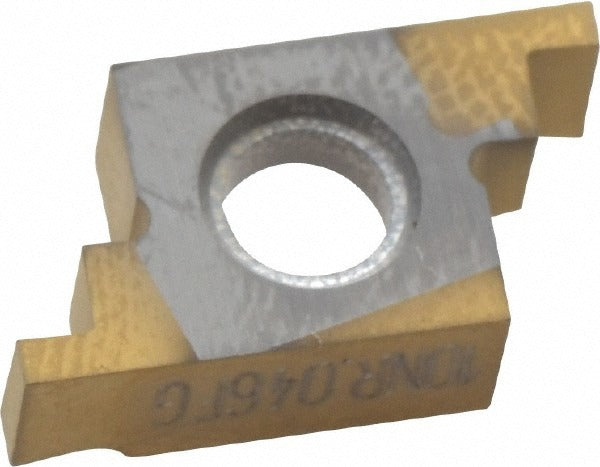

Seco 00731876 Grooving Insert CP500 Solid Carbide

Product Description

The SECO 00731876 is a solid carbide grooving insert designed for external threading and grooving operations on CNC lathes and turning centers. Manufactured to ISO standards with a CP500 micrograin carbide grade, this insert features a PVD-applied dual coating of TiAlN and TiN for extended tool life across a wide range of workpiece materials. The right-hand 10NR insert style has a cutting width of 0.046 inches and a maximum depth of cut of 0.046 inches. It is held in place via a clamp-style insert seat, size 10. Machinists and toolroom technicians install this insert in Snap Tap series toolholders for precision grooving work.

This insert is suited for general-purpose turning and grooving applications on materials classified under ISO material groups H, K, M, N, O, P, and S, making it a universal-duty option. Typical applications include OD grooving, threading, and parting operations in production machining environments, both job shop and high-volume. The FG chip breaker geometry is optimized for controlled chip evacuation during grooving cycles. This insert is sold individually per package with a minimum order quantity of two units.

Key Features

• CP500 micrograin solid carbide grade for wear resistance and edge stability
• PVD-applied TiAlN and TiN dual coating for extended tool life
• FG chip breaker geometry for controlled chip flow during grooving
• 0.046 inches cutting width with 0.046 inches maximum depth of cut
• Clamp-style holding method for secure, repeatable insert positioning
• Universal primary workpiece material rating across ISO groups H, K, M, N, O, P, and S

Compatibility

Designed for use with Snap Tap series clamp-style toolholders accepting a size 10 insert seat and a 1/4 inch inscribed circle. Compatible with right-hand 10NR insert seat configurations.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder is secured before seating or removing the insert. Use the appropriate torx or hex key per the toolholder manufacturer specification when tightening the clamp. Inspect the insert seat for debris or wear before installing a new insert to maintain edge repeatability.
